ams OSRAM LED ENGIN LuxiGen® LZ1-00UVH0 LED

ams OSRAM LED ENGIN LuxiGen^® LZ1-00UVH0 LED offers a robust high-power ceramic package with an integrated glass lens. The LZ1-00UVH0 provides 367nm λpeak with 80° typical radiation. The ams OSRAM LZ1-00UVH0 LED is intended for entertainment, material processing, and medical lighting applications. The device implements UX:3 chip technology.

Features

Ceramic package with integrated glass lens
UX:3 chip technology

80° typical radiation
Color at λpeak = 367nm (ultraviolet (UV-A))

Applications

Agriculture and horticulture
Appliances and tools
Entertainment

Material processing
Medical lighting

Specifications

1100mW to 1760mW total radiant flux
-30°C to +85°C operating temperature
-40°C to +125°C storage temperature

900mA forward current
ESD sensitive device
Not designed for reverse operation

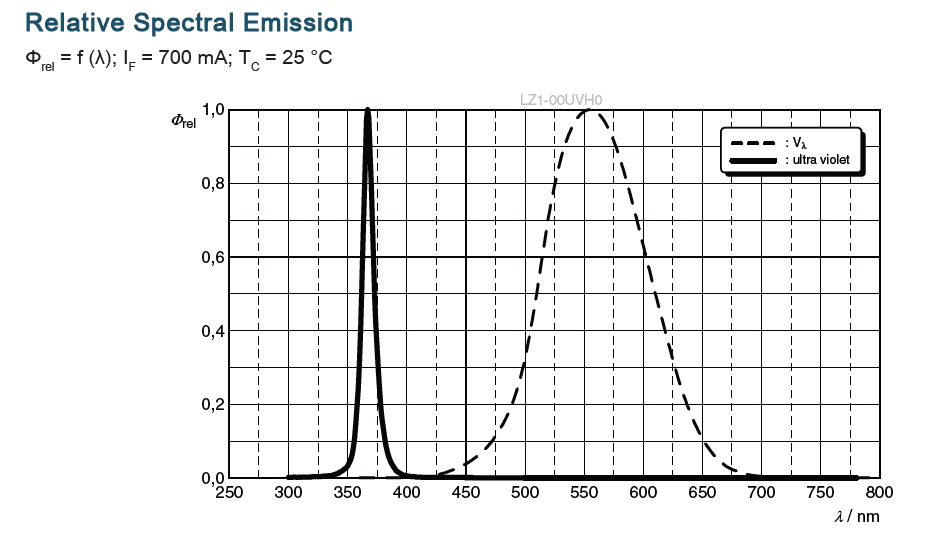

Performance Graph - ams OSRAM LED ENGIN LuxiGen® LZ1-00UVH0 LED

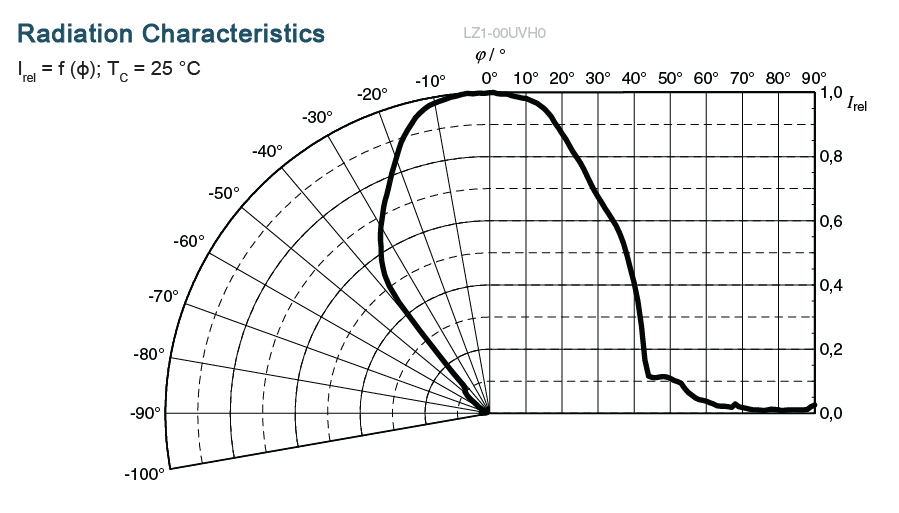

Performance Graph - ams OSRAM LED ENGIN LuxiGen® LZ1-00UVH0 LED
