ams OSRAM Kx CULPM1 OSTAR® Projection Compact LEDs

ams OSRAM Kx CULPM1 OSTAR® Projection Compact LEDs are a compact light source with an isolated heat sink for improved heat dissipation. The device implements high-current chip technology for increased light output. The ams OSRAM Kx CSLNM1.13 OSTAR projection compact is available in a 455nm blue, 622nm red, and 530nm true green color and is housed in a white molded SMD ceramic package.

Features

White molded SMD ceramic package
Color
- KB CULPM1.14 – λdom = 455nm (blue)
- KR CULPM1.23 – λdom = 622nm (red)
- KT CULPM1.13 – λdom = 530nm (true green)
Corrosion Robustness Class: 3B

Chip technology
- UX:3 – KB CULPM1.14 and KT CULPM1.13
- Thinfilm – KR CULPM1.23
ESD: 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

Applications

Entertainment
Factory automation

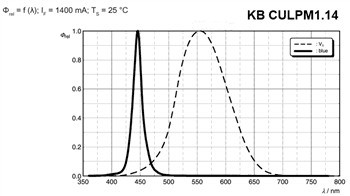

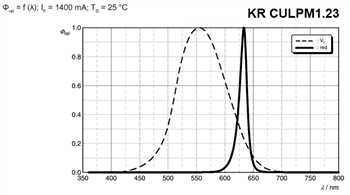

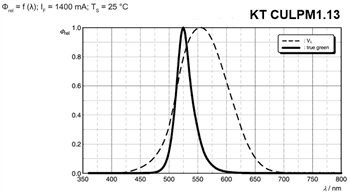

Relative Spectral Emission

Chart - ams OSRAM Kx CULPM1 OSTAR® Projection Compact LEDs
