ams OSRAM KW2 C2LNL3.TK & KW3 C3LNL3.TK OSLON® Submount PL

ams OSRAM KW2 C2LNL3.TK and KW3 C3LNL3.TK OSLON® Submount PL meets various requirements for output and adaptability to ambient conditions. The ams OSRAM KW2 offers a uniform light pattern, thermal stability, and great brightness. The devices feature a compact light source and multi-chip on-board technology.

Features

Compact light source in multi-chip on-board technology package
UX:3 chip technology
120° (Lambertian emitter) Typ. radiation
Cx = 0.325, Cy = 0.334 acc. to CIE 1931 (white) color

3A corrosion robustness class
AEC-Q102 qualified
8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) ESD
Better than passus 3.7.2.1 of supplement proposal 7 to ECE reg. 128 color over angle

Applications

Automotive and mobility
Static forward lighting
Dynamic forward lighting

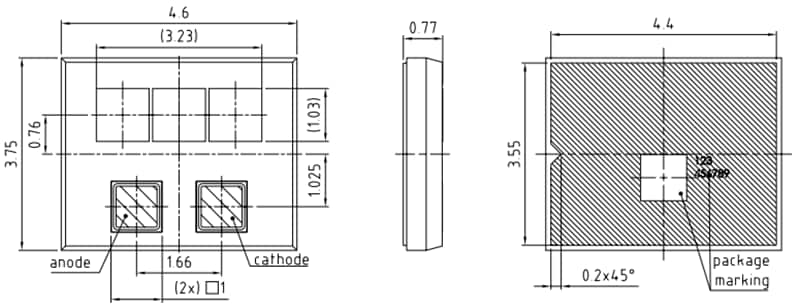

Dimensions

ams OSRAM KW2 C2LNL3.TK & KW3 C3LNL3.TK OSLON® Submount PL
