ams OSRAM FIREFLY® E1608 CT DELSS1.12 LED

ams OSRAM FIREFLY^® E1608 CT DELSS1.12 Light Emitting Diode (LED) is specifically designed for heart rate monitor applications. This true green CT DELSS1.12 LED features UX:3 chip technology, Class 1B corrosion robustness, 120° typical radiation (Lambertian emitter), and compact size. The FIREFLY E1608 CT DELSS1.12 LED also features 2kV ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBD, Class 2). This LED is available in 0.8mm x 1.6mm x 0.6mm dimensions which allows for benefitting from more flexible product designs.

Features

Color:
- λ_dom=530nm (true green)
UX:3 chip technology
120° typical radiation (Lambertian emitter)
White SMT package and colorless clear resin
Corrosion robustness class:
- 1B

5V_R reverse voltage (T_S=25°C)
ESD:
- 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
-40°C to 85°C operating temperature range
0.8mm x 1.6mm x 0.6mm dimensions

Applications

Health monitoring:
- Heart rate monitoring and pulse oximetry
- Fitness tracking

ams OSRAM FIREFLY® E1608 CT DELSS1.12 LED

Features

Applications

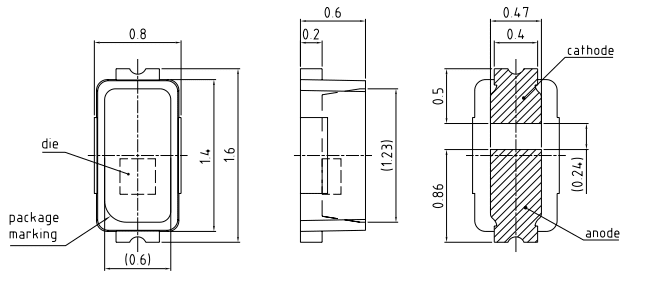

Dimensional Diagram

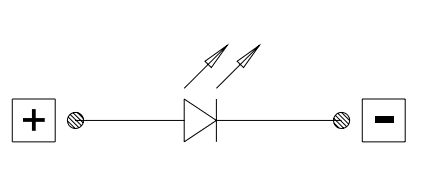

Electrical Circuit Diagram
