Amphenol Wilcoxon A-M12-PUR80-02-B Process Automation M12 Assemblies

Wilcoxon A-M12-PUR80-02-B Series Process Automation M12 Assemblies are IP67 rated and feature a chemical resistant polyurethane jacket. The connectors are compatible with 4- or 5-pin A-coded M12 connectors for a variety of applications. The assemblies are available in 5, 10, 15, or 20m lengths and a slim connector design is ideal for compact areas. Wilcoxon A-M12-PUR80-02-B Series Process Automation M12 Assemblies are designed for permanent sensor installations.

Features

IP67 rated
Compatible with 4- or 5-pin A-coded M12 connectors
5-socket M12 style connector at sensor end
Santoprene strain relief provides durability and strong chemical resistance

Slim connector design for compact areas
Polyurethane jacketed straight cable, in 5, 10, 15, or 20m lengths, blunt cut
RoHS compliant
Ideal for permanent sensor installations

Applications

Process control systems
Automation
Industrial manufacturing facilities

Chemical processing plants
Cooling towers
Refineries

Amphenol Wilcoxon A-M12-PUR80-02-B Process Automation M12 Assemblies

Features

Applications

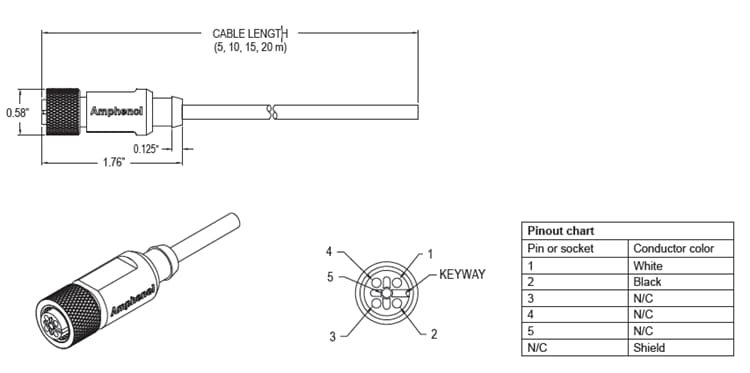

Dimensions and Pinout
