Amphenol-Tuchel M16 Q Quicklock C091 signal|mate® DIN Connectors

Amphenol-Tuchel M16 Q Quicklock C091 signal|mate® DIN Connectors feature the Quicklock Coupling System that ensures an easy mating/unmating process, verified by a tactile and audible clicking sound of the locking mechanism. Optimized for outdoor use, a thermoplastic housing provides an IP68 rating when mated and resists corrosion. The M16 Q Quicklock circular connectors are available in 3, 4, 5a, 5b, 6, 7a, 7b, 8, 12, 14a, 14b, and 19 positions in a 28AWG to 18AWG range.

Features

Available in 3, 4, 5a, 5b, 6, 7a, 7b, 8, 12, 14a, 14b, and 19 positions
IP68 rated (when mated)
Corrosion resistant
Compact and cost-effective
Thermoplastic housings

Quicklock coupling system
Cable mount plug
Rear panel mount receptacle
28AWG to 18AWG range
UL 94V-0 flammability rating
RoHS compliant

Applications

Measuring instruments and equipment
Factory automation
Drive systems and components
Lighting
Entertainment
CCTV/security cameras
Low power/signal transmission
High-resolution inspection equipment
Heavy equipment
Agriculture

Construction
Transportation
Off-road recreation
Industrial
Conveyors
Packaging machinery
Motion control
Servo motors
Wireless infrastructure

Specifications

Current rating at +40°C
- 10A for 3 to 4 positions
- 7A for 5 to 8 positions
- 3A for 12 to 19 positions
Operating voltages
- 150V for 3 to 4 positions
- 100V for 5a and 6 to 7a positions
- 32V for 5b and 7b to 19 positions

>10¹⁰Ω insulation resistance
<5mΩ contact resistance
Mating cycles
- ≥500 for silver-plated contacts
- ≥1000 for gold-plated contacts
-40°C to +100°C temperature range

Amphenol-Tuchel M16 Q Quicklock C091 signal|mate® DIN Connectors

Features

Applications

Specifications

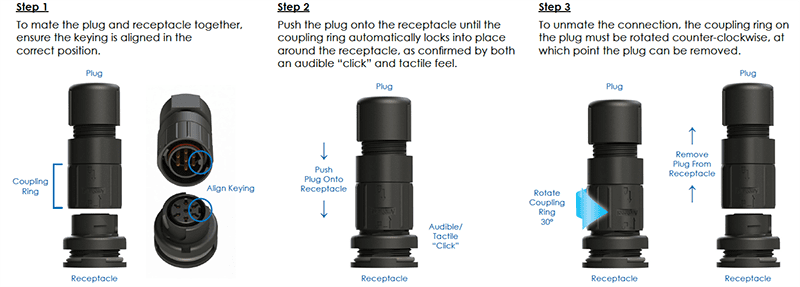

Quicklock Connection System
