Amphenol Technical Products International Heavy Duty Power Connectors

Amphenol Technical Products International Heavy Duty Power Connectors are designed as a high-performance, cost-effective signal and power transmission solution. These connectors integrate both signal and power transmission in one body. The heavy-duty power connectors feature a colored body and enhanced rib for blind mating and a 100-minute mating cycle. These power connectors are available with key A, B, and C options and CPA options. The heavy-duty power connectors are ideal for signal and power transmission for PDU in the battery pack.

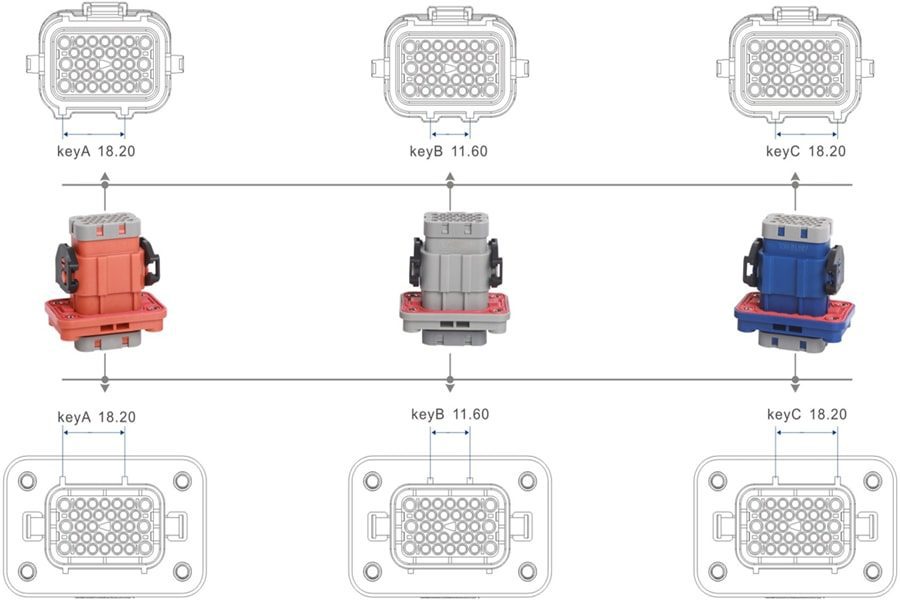

HC Signal Key Map

Amphenol Technical Products International Heavy Duty Power Connectors

Features

  • Colored body and enhanced rib for mating
  • Up to IP68 protection (mated)
  • Scalable pin count per specific requirement
  • Available with key A, B, and C option
  • Available with CPA option

Specifications

  • 32-pin count
  • Current rating:
    • 13A maximum for power transmission
    • 5A maximum for signal transmission
  • Cable size:
    • 14AWG to 18AWG power
    • 20AWG to 22AWG signal
  • 3000VDC dielectric withstand voltage
  • -40°C to 125°C operating temperature range
  • IP6K9K and IP68 (mated, submersion in 1m depth water with 48hours)
  • 100 minute mating cycle
  • 60KPa air leakage
  • UL94-V0 fire classification

Applications

  • Signal and power transmission for PDU

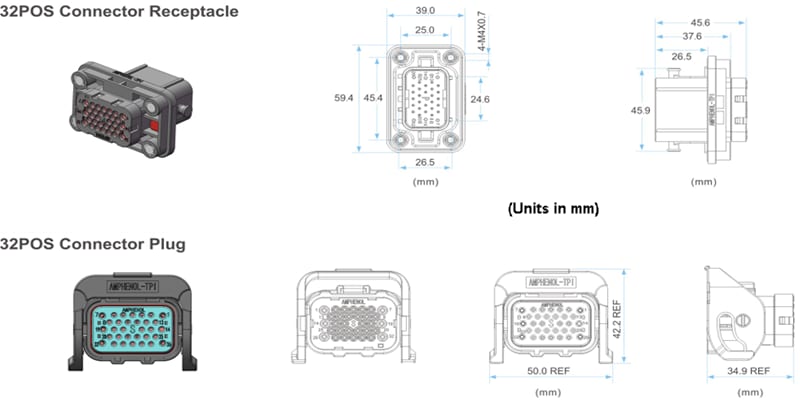

Dimension Diagram

Mechanical Drawing - Amphenol Technical Products International Heavy Duty Power Connectors
