Amphenol Sine Systems DuraMate ISOBUS 91 Connectors

Amphenol Sine Systems DuraMate ISOBUS 91 Connectors are environmentally-sealed, multi-pin, heavy-duty ISOBUS connectors. These connectors feature a metal or plastic construction, as well as IP68 and IP69K ratings. Various configurations feature contacts with contact ratings from 13A to 60A, making them suitable for a variety of applications. Amphenol Sine Systems DuraMate ISOBUS 91 Connectors are compatible with other industry-standard circular bayonet connectors.

Features

One-to-one alternative for all HD/HDB/HDP parts
Compatible to other industry-standard circular bayonet versions
Full range of backshell options
3 key-way bayonet for proper mating

High-density signal and mixed power insert configurations
High-strength, impact-resistant thermoplastic housing
Low-insertion force terminals

Applications

Harsh environments
Off-road
Agricultural

Specifications

-55°C to +125°C operating temperature range
IP68 and IP68K ratings
Options for up to 6AWG/16mm² power wires

6-10AWG, 10-14AWG, and 14-20AWG typical wire ranges
100 mating cycle durability

Amphenol Sine Systems DuraMate ISOBUS 91 Connectors

Features

Applications

Specifications

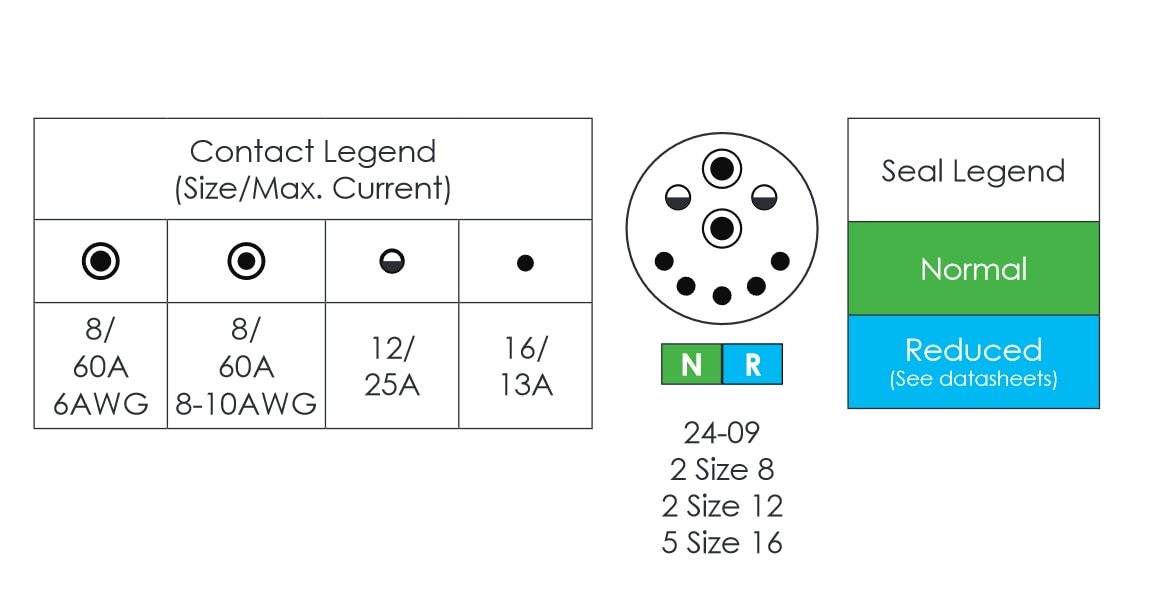

Contact Cross Section
