Amphenol SGX Sensortech SGX-VOX Oxygen Sensor for Ventilators

Amphenol SGX Sensortech SGX-VOX Oxygen Sensor for Ventilators is a 0% to 100% oxygen (O₂) sensor with onboard temperature compensation. This sensor offers <0.1% O₂ zero current (offset) and a 9mV to 13mV output voltage range in air (measured at standard pressure and temperature). Other features include <5s of T90 response time, <50s of T99.5 response time, and <2% O₂ temperature compensation at a 0°C to +40°C temperature range. Amphenol SGX Sensortech SGX-VOX Oxygen Sensor has no cross-sensitivity effect due to toxic gases at the threshold limit value (TLV) levels. The sensor is not suitable for continuous operation in concentrations of carbon dioxide (CO₂) above 25% nor is it designed for use in applications where anesthetic gases are present.

Features

0% to 100% O₂ measurement range
Onboard temperature compensation
No cross-sensitivity effect due to toxic gases at TLV levels
<0.1% O₂ zero current (offset)
9mV to 13mV output voltage range in air (measured at standard pressure and temperature)
<5s of T90 response time
<50s of T99.5 response time
<2% O₂ temperature compensation at 0°C to +40°C temperature range

10kΩ (minimum) recommended load resistor
<5% per annum long-term output drift
375000% O₂hours at +20°C
Series 4 housing design with industry-standard footprint and connections
Operating Conditions
- -20°C to +50°C temperature range
- 500mbar to 2000mbar pressure range
- 0% to 99% RH (non-condensing) operating humidity range

Amphenol SGX Sensortech SGX-VOX Oxygen Sensor for Ventilators

Features

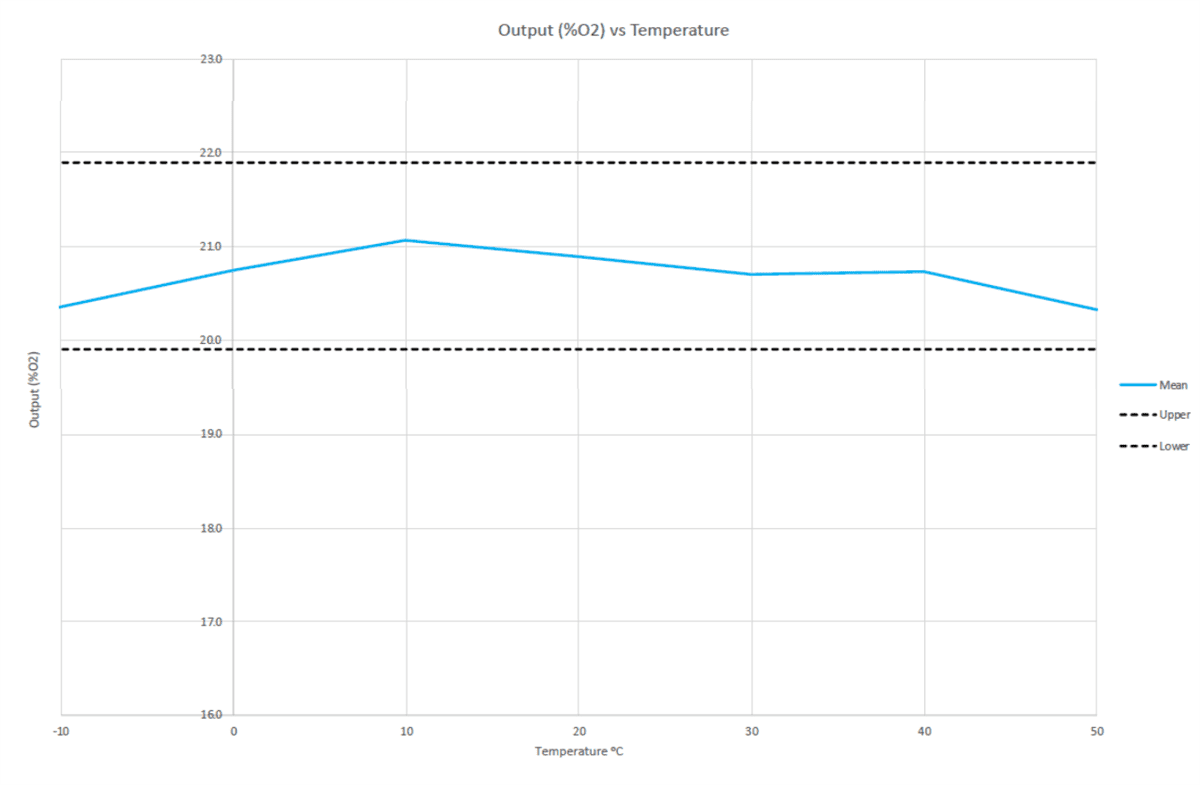

Performance Graph

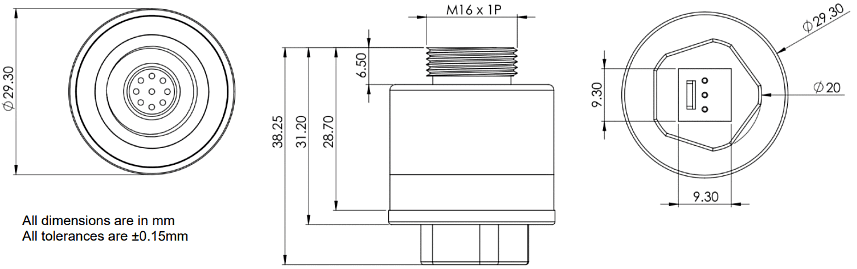

Mechanical Diagram
