Amphenol Industrial RadCrimp® Melni Solar Splice

Amphenol Industrial RadCrimp® Melni Solar Splice is certified to meet UL 6703 and IEC 62852 1500V_DC standards and features Melni spiral termination technology. The technology enhances safety, eliminates improper mating, and streamlines installation by eliminating the need for crimping and special equipment. The series provides simple and fast termination for 12AWG to 6AWG PV wires, along with low resistance and long-term reliability. Other features include IP68 sealing protection, 20A to 65A rated current, and -40°C to +85°C ambient temperature range. Amphenol Industrial RadCrimp® Melni Solar Splice is ideal for energy storage systems (ESS), solar, telecom, and backup power generation applications.

Features

Simple and fast termination
Melni spiral termination technology offers low resistance and long-term reliability
Eliminates improper mating

Field wire termination and sealing in one action without special tools
Enhanced safety
Streamlines installation

Applications

Solar
Telecom

ESS
Backup power generation

Specifications

For 12AWG to 6AWG PV wires
1500V_DC rated voltage (UL 6703 and IEC 62852)
Rated current
- 20A (4.0mm² / 12AWG)
- 30A (6.0mm² / 10AWG)
- 50A (10.0mm² / 8AWG)
- 65A (16mm² / 6AWG)
≤0.10mΩ contact resistance

IP68 sealing protection
Thermoplastic insulation material
Class A application class
Class II safety class
UL certified
-40°C to +85°C ambient temperature range
+115°C upper limiting temperature

Amphenol Industrial RadCrimp® Melni Solar Splice

Features

Applications

Specifications

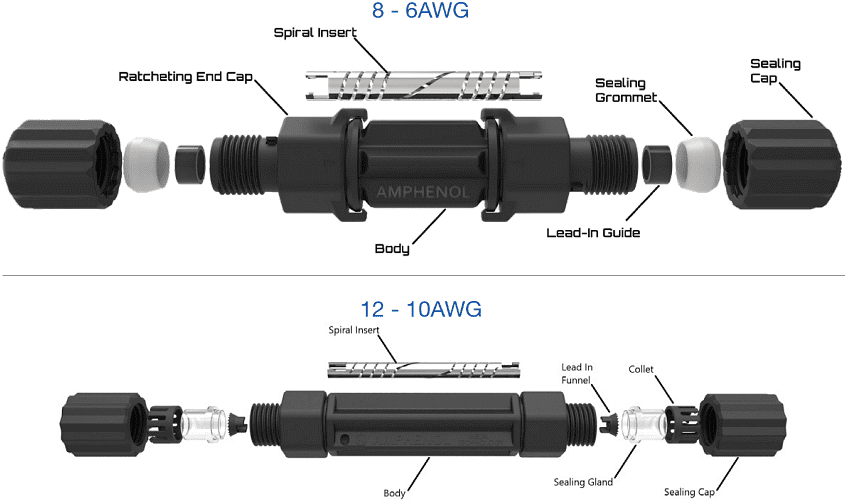

Construction
