Altera Functional Safety Data Package

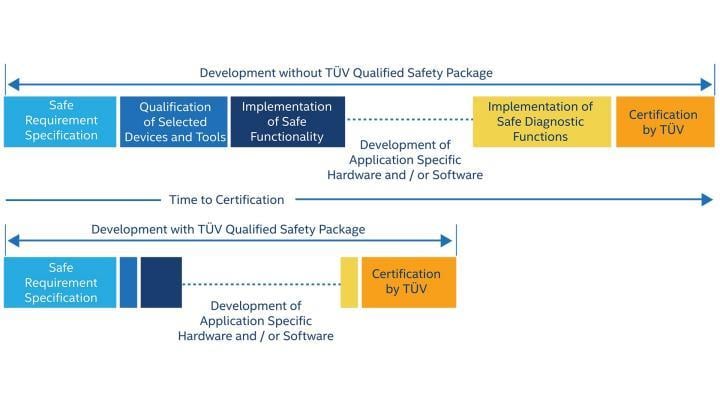

Altera Functional Safety Data Package is a solution to reduce development time, system complexity, and certification risk. This IEC61508-certified Safety Integrity Level 3 (SIL3) package reduces certification risks in safety-critical industrial applications. These applications include industrial servo and inverter drives, safety devices, and automation controllers. The Safety Separation Design Flow retains the FPGA benefit of quick upgrades/bug fixes while reducing the need for full design re-certification.

Features

Guidelines on how to use the approved Altera FPGA development methodology and tools to design IEC 61508 certifiable systems
FMEDA tool, allowing calculation of failure rates and safe failure fraction (SFF) for FPGA designs
Safety manuals, showing how to use the Altera Quartus® Prime Design Software and develop FPGA systems according to IEC 61508
Diagnostic IP with IEC 61508 standard documentation and source code to monitor the integrity of the FPGA, memory, and clock signals
FPGA device reliability reports
TÜV Rheinland qualification certificate

Altera Functional Safety Data Package

Features

TÜV-Qualified Safety Data Package Contents

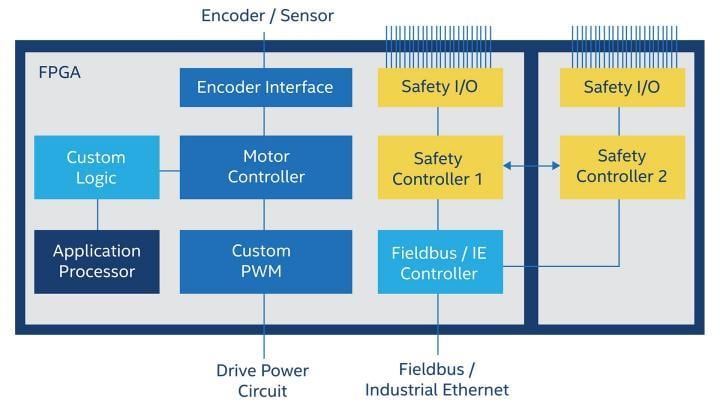

Typical Dual-Channel SIL3 Industrial “Safe” System Implemented with Two FPGAs
