Altera Agilex® F-Series FPGA Development Kit

Altera Agilex^® F-Series FPGA Development Kit is designed to develop and test PCIe 4.0 designs using the PCI-SIG-compliant development board. The development kit evaluates SoC features and performance using the Hard Processor System (HPS). The Altera / Intel Agilex® F-Series FPGA Development Kit delivers a complete design environment that includes all the hardware and software within a PCI Express (PCIe) form factor.

Kit Contents

Hardware
- Altera Agilex F-series FPGA development board mounted with Agilex F-Series FPGA, 1400 KLE, 2486A package
- 1x PCIe x16 Gen 4 golden finger connected to P-Tile transceivers, supports x1/x4/x8 mode
- 3x DDR4 DIMM sockets, supports 72-bits DDR4/DDR-T module in FPGA fabric interface
- 1x DDR4 DIMM socket, supports 72-bits DDR4 module for HPS memory interface
- 2x DDR4 DIMM module (8GB each)
- 2x standard quad small-form-factor pluggable double-density (QSFP-DD) cages
- HPS interface supporting ETH, UART, SD card socket, eMMC, and Mictor connector
- AC adapter power and USB cables

Software
- Design examples
- Board update portal design
- Board Test System (BTS) design
- Documentation
  - Altera Agilex F-Series FPGA development kit user guide
  - Quick start guide
- Board design files
- Quartus^® Prime Pro Edition software (required)

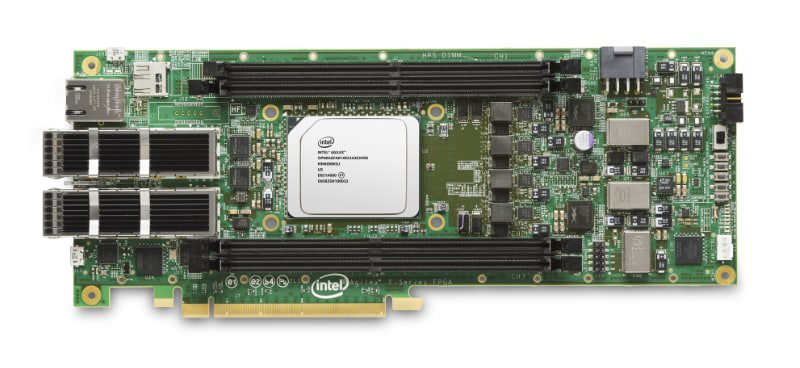

Board Layout

Chart - Altera Agilex® F-Series FPGA Development Kit

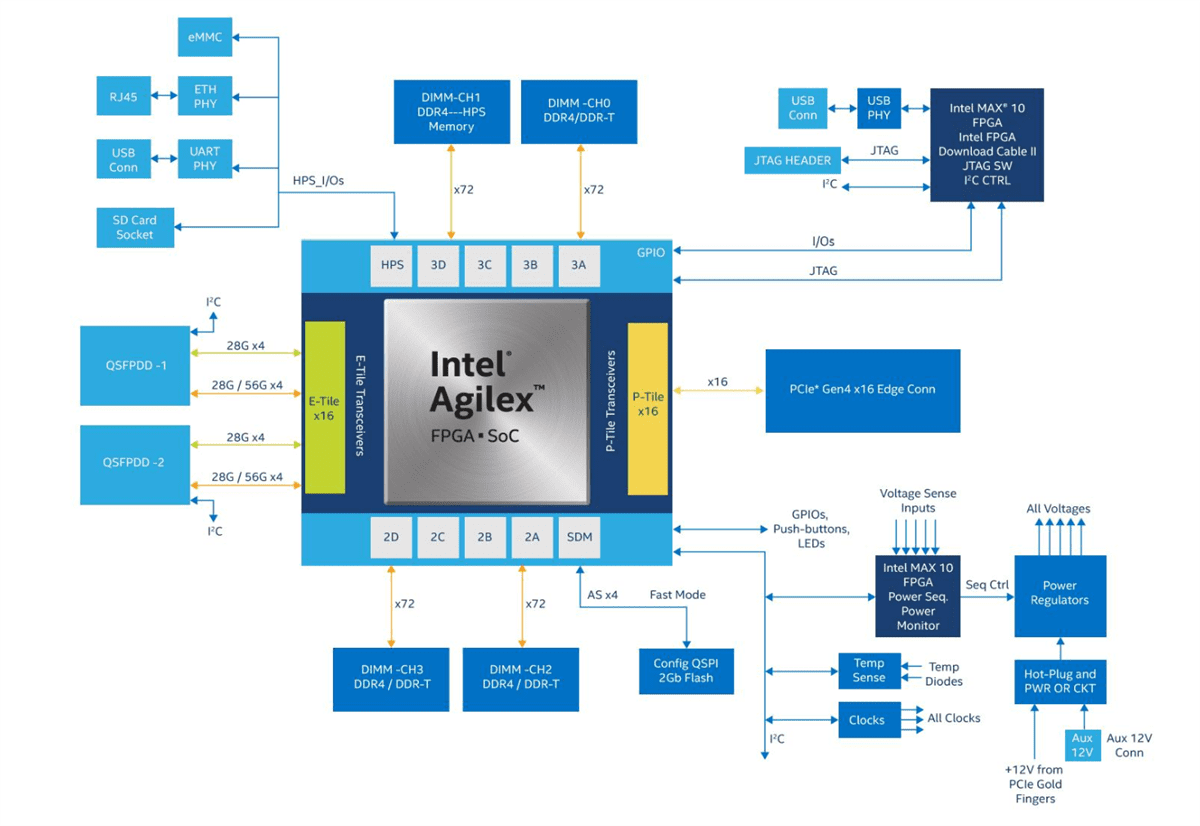

Block Diagram

Agilex F-Series FPGA Dev Kit Infographic

Infographic - Altera Agilex® F-Series FPGA Development Kit

View Full Infographic
