Alps Alpine SKTR 6.1mm Square Middle-Stroke Tactile Switches

Alps Alpine SKTR 6.1mm Square Middle-Stroke Tactile Switches are middle-stroke-type tact switches that realize low operation sound and a clear operating feel. Alps Alpine SKTR Tact Switches feature 200,000 cycles of operating life (50mA, 16V_DC), 3.8N operating force, and a 0.72mm travel. Applications include mobile, energy/industrial, gaming, and healthcare.

Features

Middle-stroke-type, realizing low operation sound and a clear operating feel
Surface-mount-type

Green stem color
Top-push operating direction

Applications

Mobile
Energy/industrial
Gaming
Healthcare

Infrastructure
Home appliances
Audio/TV
Automotive

Specifications

3.8N operating force
0.72mm travel

200,000 cycles operating life (50mA, 16V_DC)
500mΩ maximum initial contact resistance

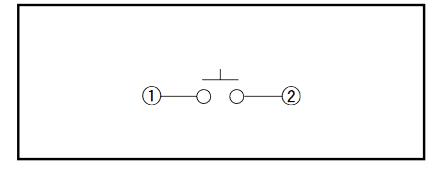

Circuit Diagram

Application Circuit Diagram - Alps Alpine SKTR 6.1mm Square Middle-Stroke Tactile Switches
