Alorium Technology Evo M51 Compute Module

Alorium Evo M51 Compute Module combines an Intel MAX 10 FPGA with an Atmel SAMD51 Cortex-M4 MCU on an Adafruit Feather compatible board. This module includes two dedicated analog I/Os, four analog out/digital I/Os, 15x digital I/Os, and 34x castellated digital I/Os. It also includes a Stemma QT (QWIIC compatible) connector for easy integration with other projects. The module is programmable with Arduino and supports the Circuit Python programming language. Typical applications include IoT edge analytics, motion/motor control, and measurement/test equipment.

Features

Processing power
- Intel MAX 10 FPGA
- Atmel SAMD51 32-bit ARM Cortex-M4 microcontroller
Analog inputs
- 6x analog pins
- 2x analog outputs
Memory
- 512KB program Flash
- 192KB data memory SRAM
- 2MB external Flash
Programmable with Arduino

Digital I/O
- 55x total digital I/O
- 21x through-hole/castellated vias
- 34x additional castellated-only
- 6x shared digital with analog pins
- 3.3V inputs/outputs
- STEMMA QT (QWIIC compatible) I²C
Designed to support Circuit Python
Feather footprint
0.9″ x 2.2″ dimensions

Applications

IoT edge analytics
Motion and motor control
Measurement and test equipment

Alorium Technology Evo M51 Compute Module

Features

Applications

Videos

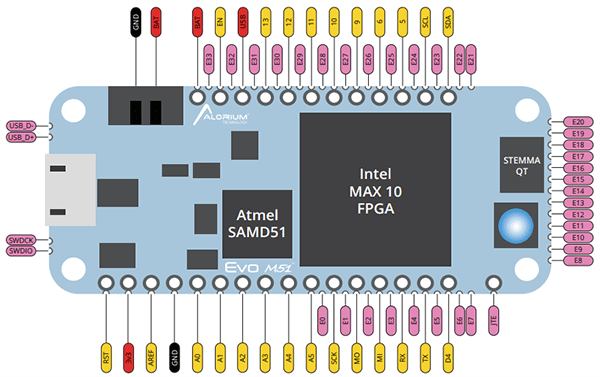

Pin Map
