Allegro MicroSystems CT813x TMR Digital Latches

Allegro MicroSystems CT813x Omnipolar Tunnel Magneto-resistance (TMR) Digital Latches provide a monolithic solution for superior sensing performance. CT813x TMR Digital Latches are designed for consumer and industrial applications and are based on Allegro MicroSystems XtremeSense™ TMR technology with an integrated CMOS process. Allegro MicroSystems CT813x Digital Latches offer stable magnetic operation over the operating temperature range. CT813x offers low power consumption as low as 110nA, which is ideal for battery-operated products where minimal current consumption is required. It supports magnetic fields down to 0.9mT for applications where there is a large air gap requirement.

Features

0.9mT to 7.0mT sensitivity with B_op range
110nA ultra-low power consumption at V_DD = 1.8V and f_s = 2Hz
1.7V to 5.5V supply voltage range
Omnipolar sensor polarity
Digital CMOS outputs
- Push-pull
- Open drain

Under-voltage lockout (UVLO)
Package options
- 3-lead SOT23
- 4-lead LGA, 1.45mm x 1.45mm x 0.44mm

Applications

Internet of Things (IoT) devices
Smartphones, tablets, and laptops
Door or lid closures
Reed switch replacement
Tamper-proofing for utility smart meters
Fluid level sensing/detection

Proximity detection
Motor controllers
Gimbals for camera systems in drones/unmanned aerial vehicles (UAVs)
Industrial machinery/robots
Medical devices

Allegro MicroSystems CT813x TMR Digital Latches

Features

Applications

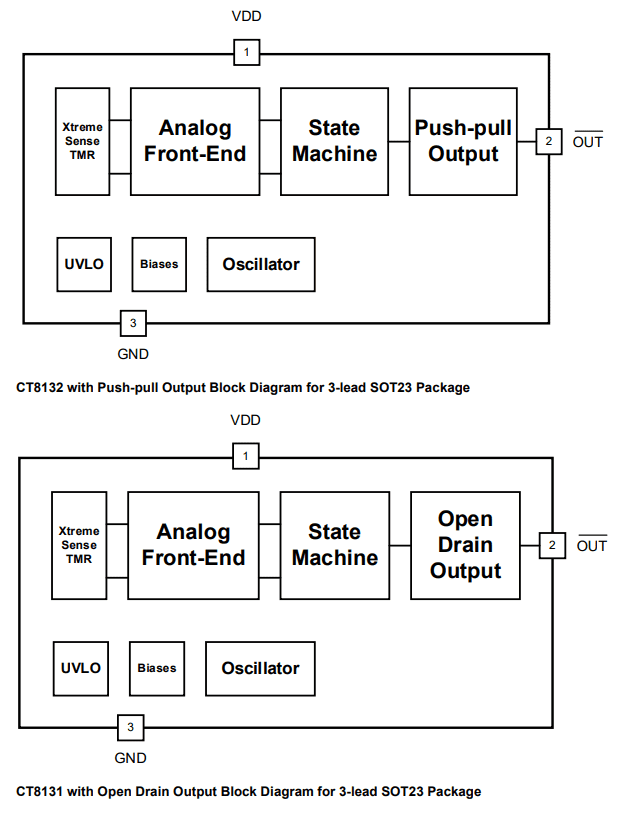

Block Diagrams
