Airgain NL-SW-LTETCxNA Skywire® 4G LTE Cat 4/Cat 1 Modems

Airgain NL-SW-LTETCxNA Skywire® NimbeLink 4G LTE Cat 4/Cat 1 Embedded Cellular Modems deliver fast, reliable cellular connectivity to products with applications in North America. These Skywire modems leverage Category 4 (NL-SW-LTE-TC4NAG-B) and Category 1 (NL-SW-LTE-TC1NAG) technology. The modems support GNSS, dual SIMs, a single SKU for AT&T and Verizon networks, integrated TCP/IP stacks, and AT&T’s FirstNet (Band 14). The Airgain NL-SW-LTETCxNA Embedded Cellular Modems are pin-compatible with all other Skywire form factor modems.

Features

NimbeLink form-factor
4G LTE Category 1 (NL-SW-LTE-TC1NAG) or Category 4 (NL-SW-LTE-TC4NAG-B) with 3G fallback
All RF engineering contained within the modem
Carrier End-Device certified
U.FL port for flexible antenna options
Band 14 support, FirstNet compatible
Dual SIM support with integrated solder-down SIM and external 3FF SIM card slot
Direct module access via Serial UART or USB

Integrated GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
Multi-carrier support on a single device
NimbeLink family pin compatibility
Long network life
Easily connect to Verizon or AT&T networks
Improved reception with RX diversity
8 Band LTE support
1-year standard warranty
RoHS compliant

Specifications

Throughput
- 10Mbps download and 5Mbps upload for NL-SW-LTE-TC1NAG
- 150Mbps download and 50Mbps upload for NL-SW-LTE-TC4NAG-B
3.4V to 4.2V supply voltage range, 3.8V nominal
1.65V to 5.5V I/O voltage range

30mV maximum main power supply ripple voltage
2000mA maximum current consumption, 400mA typical
-40°C to +85°C temperature range
29.0mm x 33.9mm x 10.7mm in dimension

Airgain NL-SW-LTETCxNA Skywire® 4G LTE Cat 4/Cat 1 Modems

Features

Specifications

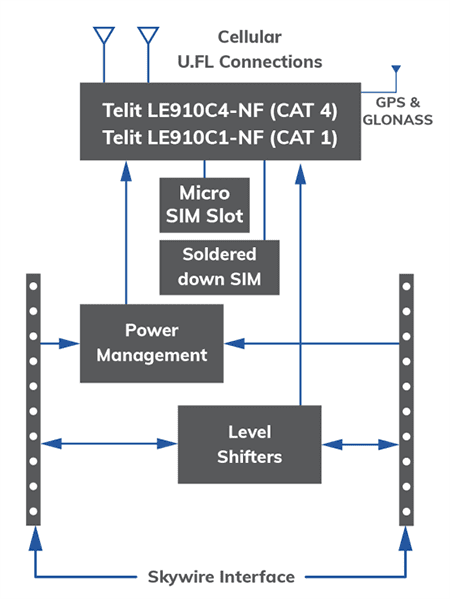

Block Diagram
