Advantech MIO-5272 3.5″ Single Board Computer (SBC)

Advantech MIO-5272 3.5″ Single Board Computer (SBC) features the compact MI/O Extension form factor and is powered by Gen 6th and 7th Gen Intel® Core™ U-Series (i7/i5/i3/Celeron®) Processors. The MIO-5272 SBC features an optimized thermal design, enabling a fanless, high-performance platform. The MIO-5272 also embeds SUSI 4.0 and WISE-PaaS/RMM to monitor and control system operations effectively and remotely. These tools offer greater system reliability and a smarter software framework for embedded customers and speed up development times.

The Advantech MIO-5272 adopts 64-bit, multi-core processors built on 14nm process technology for improvements in CPU processing, graphics, security, and I/O flexibility. The MIO-5272 includes a dedicated graphics core (Intel HD Graphics 520) with DirectX 11.3, OpenGL 4.4, OpenCL 2.1, and 4K encoding/decoding. This SBC also supports triple independent displays, including HDMI, VGA, and 48-bit LVDS interfaces. These features increase possibilities for multimedia application development. Low power dual 8GB 1600MHz DDR3L memory and TPM are also supported, making the MIO-5272 suitable for various high-level embedded applications.

Features

Generation 6/7 Intel Core U-series Processor
- i7 7600U 8GHz, dual-core, four threads
- i7 6600U 6GHz, dual-core, four threads
- i5 6300U 4GHz, dual-core, four threads
- i3 6100U 3GHz, dual-core, four threads
- Celeron 3955U 0GHz, dual-core, two threads
L3 Cache
- i7 7600U: 4MB
- i7 6600U: 4MB
- i5 6300U: 3MB
- i3 6100U: 3MB
- Celeron 3955U: 2MB
Advanced Technologies
Intel Turbo Boost Technology 0 (i5/i7 series only)
Intel Advanced Vector Extensions 0 (Intel AVX2)
Memory
- Up to 16GB DDR3L 1600MHz
- 2x 204-pin SODIMM socket
Display
- Controller: Intel HD Graphics 620/520/510 (Celeron)
- Processor graphics
  - DurectX 12, DirectX 11.3, OpenGL 4.4, and OpenCL 2.1
  - Full AVC/VC1/MPEG2 HW Decode
- VGA: 1920 x 1200 @ 60Hz or 2048 x 1152 @ 60Hz with reduced blanking
- LVDS
  - LVDS with 3.3V, 5.0V, and 12.0V on LCD V_DD power, 5V and 12V support on LVDS inverter
  - Dual-channel 24-bit LVDS, max resolution up to 1920 x 1200 at 60Hz
- HDMI
  - Supports HDMI 1.4 for HD video playback
  - Max resolution up to 4096 x 2160 at 24Hz
- Multi-Display: VGA + HDMI, VGA + LVDS, HDMI + LVDS, VGA + HDMI + LVDS
Ethernet
- Speed: 10/100/1000Mbps
  Controller: GbE1: Intel i219, GbE2: Intel i210
  Connector: 2x RJ45 on rear I/O
Audio
- Codec: High Definition Audio (HD), Line-in, Line out, Mic-in
- Amplifier: Optional via MIOe

Watchdog Timer
- Output system reset
- Programmable counter from 1 to 255 minutes/ seconds
Storage
- SATA: 2, up to 6.0Gb/s (600MB/s)
- mSATA 1x Full-size (support either mSATA or mini PCIe)

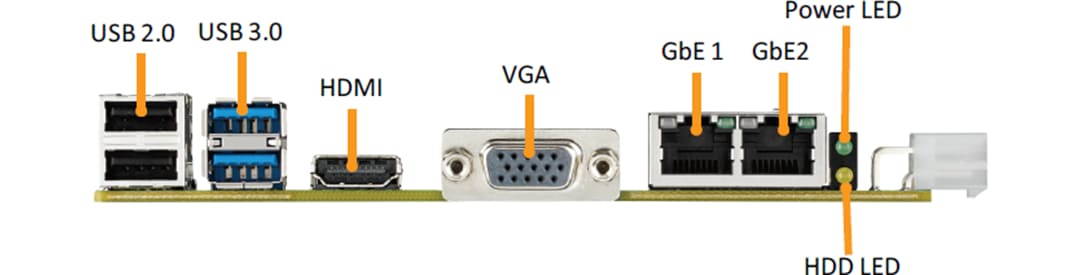

Rear I/O
- 2x Ethernet
- VGA
- HDMI
- 2x USB 2.0
- 2X USB 3.0
- Power, HDD LEDs
- DC Jack
Internal I/O
- Serial 2 x RS-232/422/485 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
- 2x USB
- I²C shared with SMBus pin
- SMBus
- GPIO 8-bit general purpose input/output
Security: TPM2.0
Expansion
- Mini PCIe 2x Full-size
- MIOe Displayport, SMBus, USB3.0, LPC, 2x PCIe, line out, +5 Vsb/+12 Vsb power, Power On, Reset
Power
- Power Type Single 12V DC power input
- Power Supply Voltage Supports single 12V input, ± 10%
- Power Consumption (Typical) I7 7600U: 6.46W, i7 6600U: 6.46W, i5 6300U: 5.26W, i3 6100U: 5.02W, Celeron 3955U: 4.88W
- Power Consumption (Max) I7 7600U: 22.03W, i7 6600U: 22.03W, i5 6300U: 20.87W, i3 6100U: 20.45W, Celeron 3955U: 17.81W
- Power Management ACPI
- Battery Lithium 3V / 210mAH
Environment
- Operating temperature: 0°C to +60°C
- Operating humidity: 95% RH non-condensing at 40°C
Physical characteristics
- 146mm x 102mm PCB

Applications

Factory and industrial automation
Energy and environment
Retail and hospitality

Security and video surveillance
City services
Smart Building

Kit Contents

MIO-5272 SBC
30cm SATA cable
35cm SATA power cable
20cm audio cable
22cm COM RS-232 cable

24mm heatsink
Startup manual
Mini jumper
Screw Kit (4x screws for mini PCIe)
SUSIAccess Pro package

Resources

Datasheet
User Manual

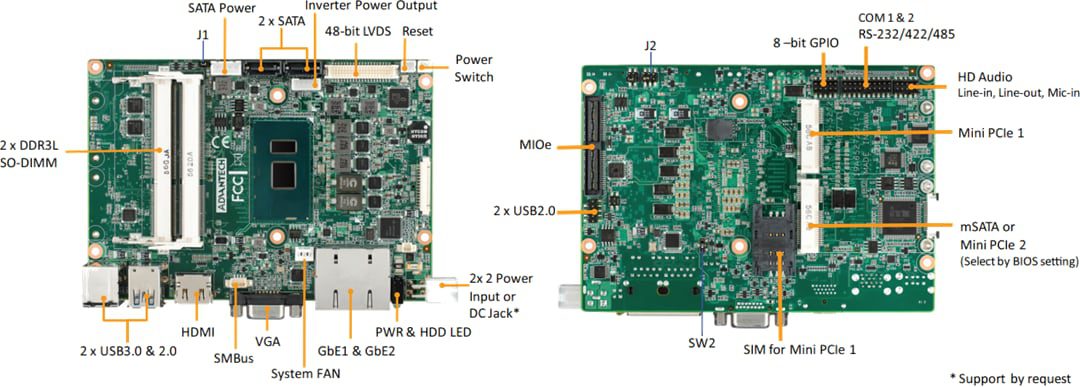

Board Layout

Rear I/O Panel

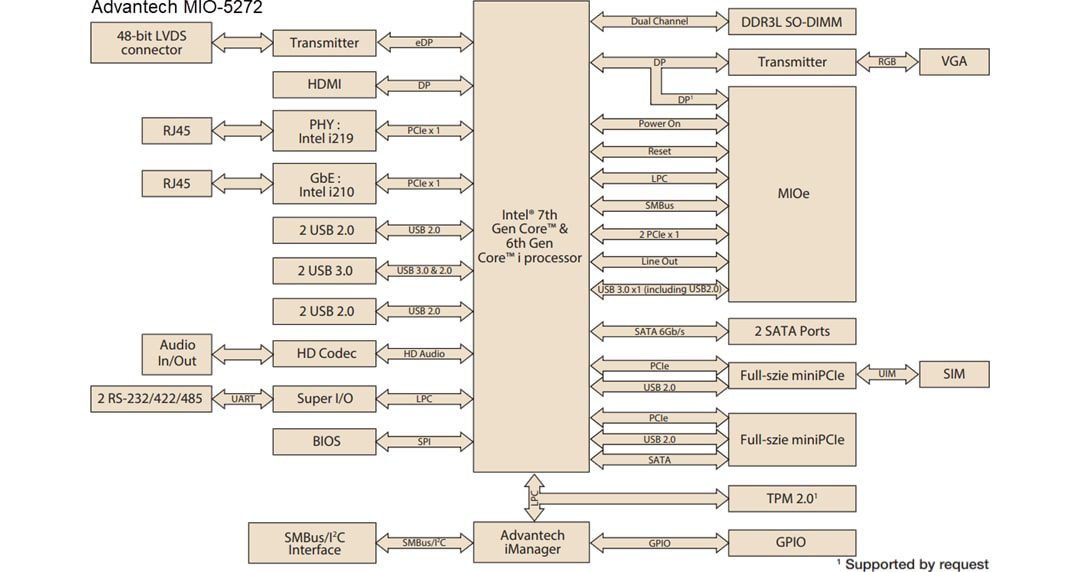

Block Diagram

Dimensions

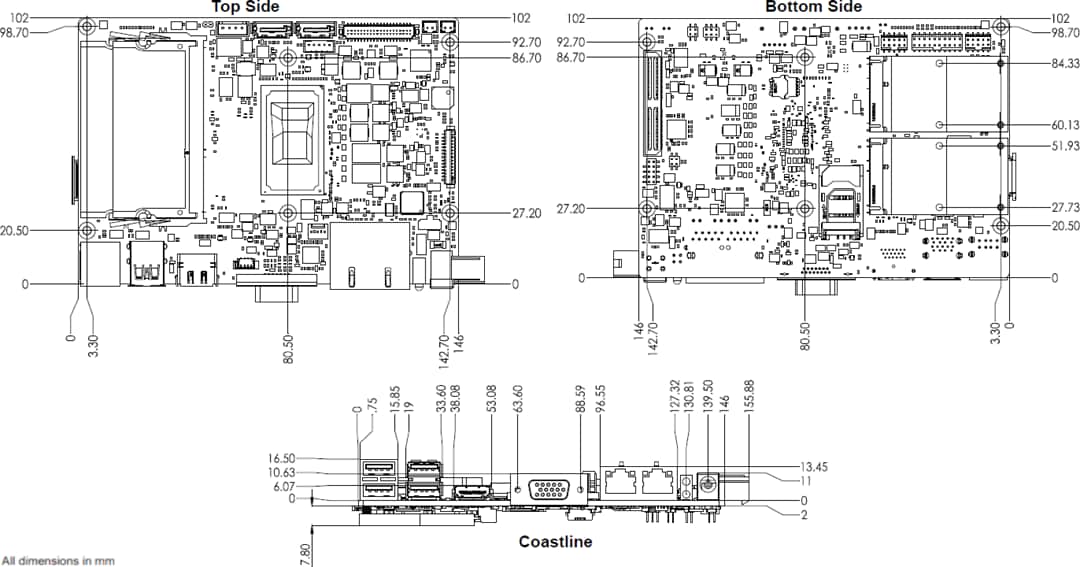

Mechanical Drawing - Advantech MIO-5272 3.5
