Advantech IPS-D22A60W DIN-Rail Power Supplies

Advantech IPS-D22A60W DIN-Rail Power Supplies feature a compact design with 60W output and high efficiency of up to 88% @230V_AC. These power supplies operate from 85V_AC to 264V_AC or 100V_DC to 375V_DC input range and -20°C to 70°C temperature range. The IPS-D22A60W power supplies support Over Voltage Protection (OVP), Short-Circuit Protection (SCP), Over Current Protection(OCP), and Over Temperature Protection (OTP).

Features

Compact design with 60W output
85V_AC to 264V_AC or 100V_DC to 375V_DC input range
High efficiency up to 88% @230V_AC
47Hz to 63Hz input frequency range
Cold start at -30°C

Supports OVP/SCP/OCP/OTP
LED indicator for DC OK
±1% accuracy
<1.8A @115V_ACand <1.0A @230V_AC
-20°C to 70°C operating temperature range

Advantech IPS-D22A60W DIN-Rail Power Supplies

Features

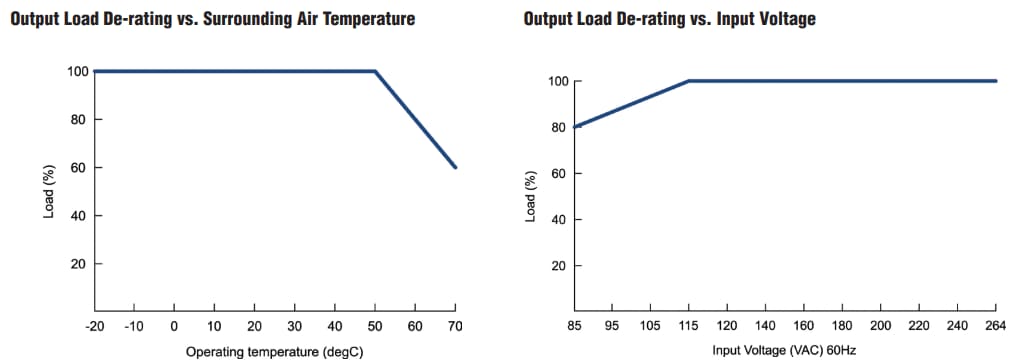

Performance Graph

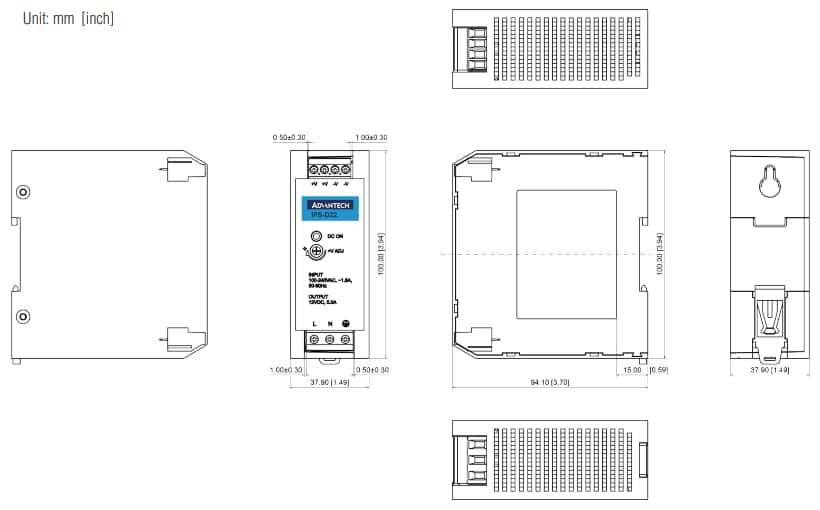

Dimension Diagram
