Advantech iDAQ-7 Series TTL Digital I/O Modules

Advantech iDAQ-7 series TTL Digital I/O Modules Feature 48-channels, are detachable Euro-type spring terminal connectors and are hot-swappable in the iDAQ system. These iDAQ-7 series modules support buffered acquisition/update rates up to 200kHz. The iDAQ-7 series modules configure digital I/O direction and have isolation protection of 60V_DC. This digital I/O features edge detection, pattern match detection, and latch digital input states when the interrupt occurs. The iDAQ-7 series modules operate at -20°C to 60°C operating temperature range, -0.25V to 5.25V voltage range, and 5μs max response time.

Features

Hot-swappable in the iDAQ system
Detachable Euro-type spring terminal connectors
48-channel TTL digital I/Os
Configurable digital I/O direction
Isolation protection of 60V_DC
Supports buffered acquisition/update rates up to 200kHz

Edge Detection:
- Rising edge, falling edge, or both the edges and software configurable for each channel independently
Pattern match detection:
- By port detection each channel can be enabled or disabled by software independently

Specifications

-0.25V to 5.25V voltage range
-0.5V to 6.5V input protection voltage
50kΩ pull-down resistor

5μs max response time
-20°C to 60°C operating temperature range
-40°C to 70°C storage temperature range

Advantech iDAQ-7 Series TTL Digital I/O Modules

Features

Specifications

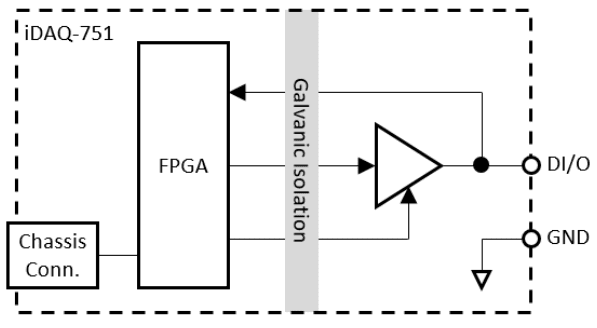

Block Diagram
