Advantech FPM-200 Industrial Monitors

Advantech FPM-200 Industrial Monitors feature sleek, simple lines and a true-flat touchscreen with an IP66-rated aluminum alloy front bezel. These rugged displays offer an industrial-grade design that withstands operation in various industrial environments. The anti-glare screen utilizes tempered glass, and the PCAP touch control is durable yet enables simple, intuitive operation. These monitors incorporate a 16:9 widescreen and slim design while supporting various operating systems. Advantech FPM-200 Industrial Monitors feature direct HDMI, DP, and VGA input interfaces and several mounting options – panel, wall, desktop, and VESA arm. The series suits intuitive operation in industrial environments such as smart factories and machine automation displays.

Features

12″ XGA / 17″ SXGA TFT LED LCD with 50,000 backlight lifetime
15″ XGA TFT LED LCD with 70,000 backlight lifetime
Input interfaces
- Direct High-Definition Multimedia Interface (HDMI)
- DisplayPort (DP)
- Video Graphics Array (VGA)
Anti-glare screen with tempered glass
Robust system with die-cast aluminum chassis
IP66-rated aluminum alloy front bezel

Lockable I/O connectors
Slim design for easy installation

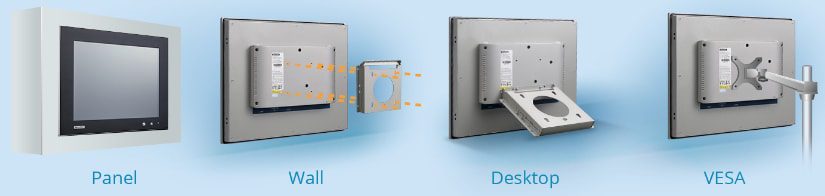

Support various mount options
- Panel
- Wall
- Desktop
- VESA arm

Applications

Machine control
Process automation
Shop floor monitoring

eSOP workstation
Control rooms
Warehouse management

Specifications

15W+20% power consumption
BSMI, CCC, CE, FCC Class A, and UL certifications
Touch screen
- USB interface
- 5-wire analog resistive type
- Above 75% light transmission
- Windows XP, Vista,7, 8,10, XPe, and Linux operating system support

LCD display
- XGA/XGA/SXGA TFT LCD display
- 12″, 15″, and 17″ display sizes
- 1024 x 768 / 1024 x 768 / 1280 x 1024 maximum resolutions
- 0°C to +50°C operating temperature range
- IP66 graded front panel

Advantech FPM-200 Industrial Monitors

Features

Applications

Specifications

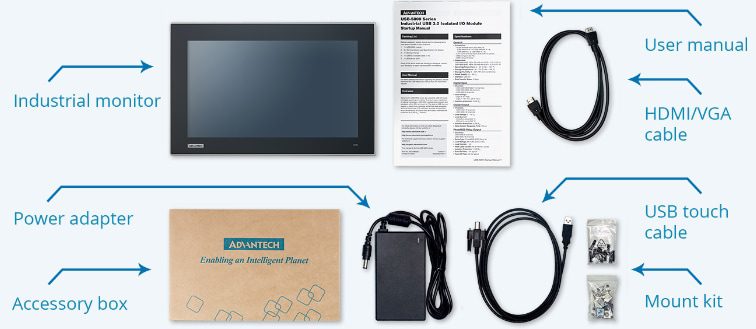

Kit Contents
