Advantech AIMB-205G2-00A1E Mini-ITXs

Advantech AIMB-205G2-00A1E Mini-ITX supports Intel® 6th and 7th Gen Core™ i processors (LGA1151) with an Intel H110 chipset. The board features two 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM. It supports PCIe x 16 (Gen 3), 1 F/S miniPCIe, 1 M.2 2242 , 4 USB 3.0, 6 USB2.0 and 2 SATA III.

Features

Supports Intel® 6th and 7th Gen Core™ i processor (LGA1151) with Intel H110 chipset
Two 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM
Supports PCIe x 16 (Gen 3), 1 F/S miniPCIe, 1 M.2 2242 , 4 USB 3.0, 6 USB2.0 and 2 SATA III

Supports dual display of DP/DVI/VGA/LVDS(optional)
Supports TPM 1.2 / 2.0 (optional)

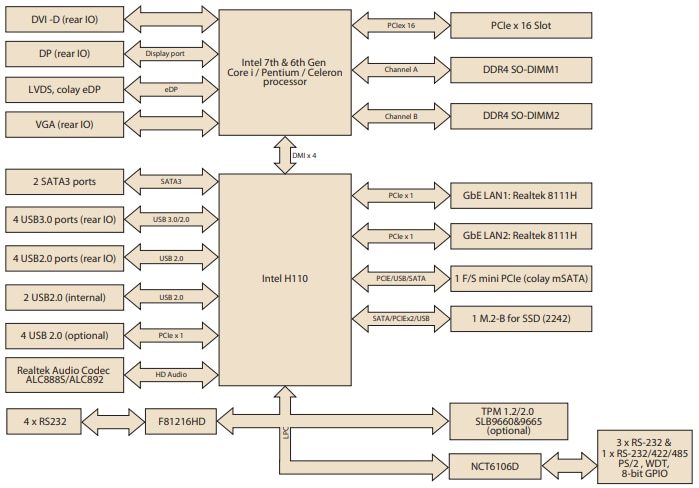

Block Diagram

Block Diagram - Advantech AIMB-205G2-00A1E Mini-ITXs
