Advantech ADAM-6717SK I/O Gateway Starter Kit

Advantech ADAM-6717SK I/O Gateway Starter Kit is an integrated sensor-to-cloud solution that provides a simple way to build IoT condition monitoring for remote facilities. This starter kit comprises 9 built-in sensors and actuators for diverse facility condition monitoring. The ADAM-6717SK starter kit is an all-in-one I/O gateway connecting OT and IT. This starter kit incorporates low-code software ready with Node-RED graphic programming. The ADAM-6717SK kit provides ready-to-use examples for data acquisition, data logger, data processing, data forwarding, event handling, and dashboard functions. Typical applications include factory facility monitoring with Analog Inputs (AI), Digital Inputs (DI), and Digital Outputs (DO).This device is capable of monitoring device noise (AI), temperature (AI), gas (AI), crash sensor (DI), and emergency button (DI), and achieving a dashboard for data visualization.

Features

Low-code software ready with Node-RED graphic programming:
- Data collection
- Data processing
- Data logger
- Event handling
- Data forwarding
- Visualization

All-in-one I/O gateway connecting OT and IT
9 built-in sensors and actuators for diverse facility condition monitoring

Specifications

Digital input:
- 5 channels
- Dry contact:
  - Logic 0: open
  - Logic 1: close to the ground
- Wet contact:
  - Logic 0: 0V_DC to 3V_DC
  - Logic 1: 10V_DC to 30V_DC
- Button and crash sensor
Digital output:
- 4 channels
- 30V_DC sink output at 0.1A maximum per channel
- Buzzer, fan, and relay sensor
Analog input:
- 8 (differential) channels
- 10 or 100 samples/second
- 16 bits resolution
- Sound, thermistor, photocell, and gas sensor

Communication:
- 2 x RJ-45 10/100Mbps (2MAC ID) LAN port
- 2 x RS-485
- USB port:
  - 1 x USB Type-A 2.0
  - 1 x USB Micro-B 2.0
General:
- 10V_DC to 30V_DC
- Node-RED Linux C programming
- DDR3L 512MB memory
- NAND flash 512MB for system storage microSD slot (optional)
- 2500 V_DC isolation
- -40ºC to 70°C operating temperature range

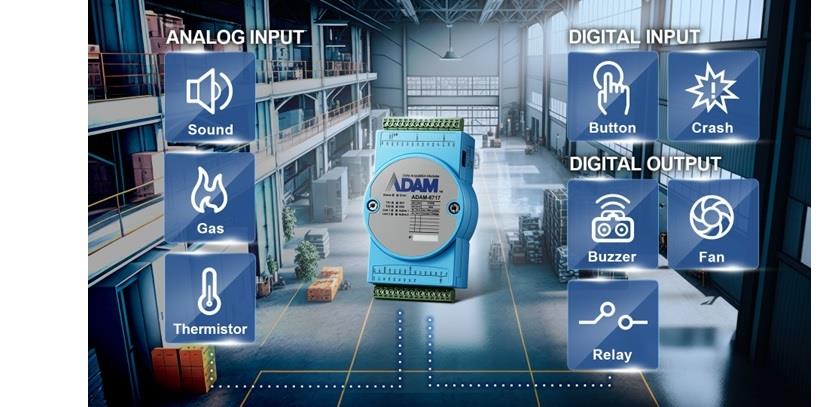

Applications

Factory facility monitoring
- Monitors device noise (AI)
- Monitors temperature (AI) and gas (AI)
- Crash sensor (DI) and emergency button (DI)

I/O Gateway uploads the data to the Cloud and backups to the local ADAM-6717
Receives other device data via Ethernet / RS-485 and expands the monitor area
Dashboard for data visualization

Advantech ADAM-6717SK I/O Gateway Starter Kit

Features

Specifications

Applications

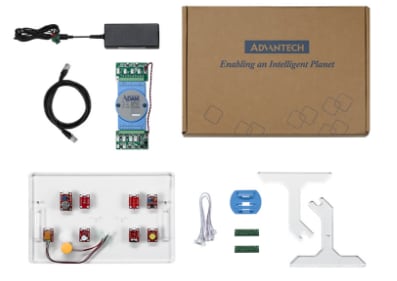

Kit Contents
