ADLINK Technology Express-CFR Type 6 Modules

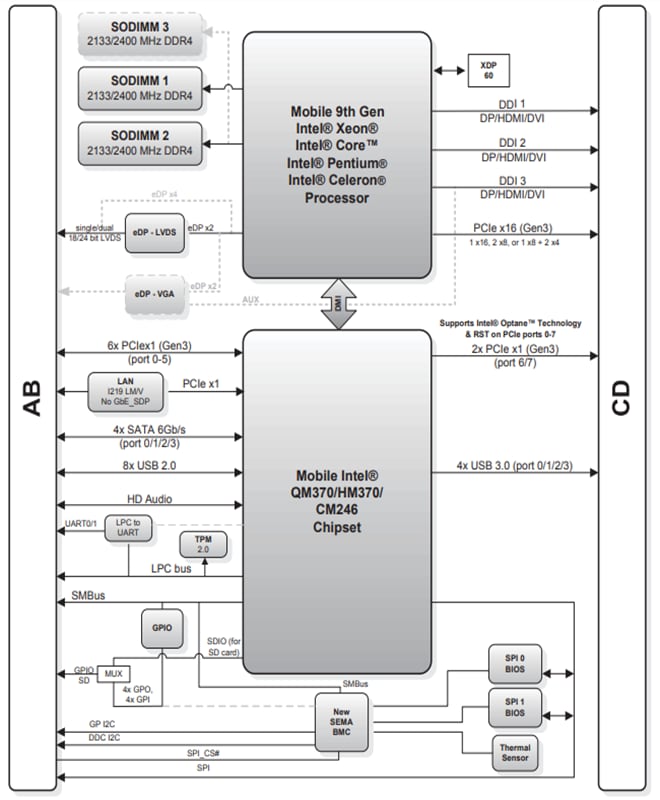

ADLINK Technology Express-CFR Type 6 Modules support the Quad/Hexa-core 64-bit 9^th Generation Intel^® Core™ and Xeon^® processor with Mobile Intel^® QM370, HM370, and CM246 chipsets. These Express-CFR modules are COM.0 R3.0 Type 6 modules that include up to three SODIMM sockets supporting up to 96GB of DDR4 memory. The Express-CFR modules feature three DDI channels, one Low Voltage Differential Signaling (LVDS), and support up to three independent displays. These modules are specifically designed for high-performance processing graphics requirements to outsource the custom core logic of the systems for reduced development time. In addition to the onboard integrated graphics, a multiplexed PCIe x16 graphics bus is available for discrete graphics expansion. The input/output features include eight PCIe Gen3 lanes that can be used for NVMe SSD and Intel^® Optane™ memory, allowing applications access to the highest speed storage solutions.
