ADI Trinamic TMC6140-LA 3-Phase BLDC MOSFET Gate Driver

Analog Devices Inc. TMC6140 3-Phase BLDC MOSFET Gate Driver is optimized for Permanent Magnet Synchronous Motors (PMSM) and Brushless DC (BLDC) motors. Ideally suited for applications in the range of 5V to 24V, the TMC6140 supports motor power ratings from 1W to 1kW. The device is designed to work with a single external power supply rail. All required supply voltages are generated internally based on the motor supply. The TMC6140 generates a fixed 3.3V rail voltage with a switching regulator (buck converter). An internal Schottky diode generates enough power for the IOs and an external microcontroller. This diode is operational up to 100mA load. In case more current has to be served, an external diode has to be mounted in parallel.

The ADI TMC6140-LA 3-Phase MOSFET Gate Driver is available in a compact 5.0mm x 6.0mm Quad-Flat No-Lead (QFN) package.

Features

Supports 3-phase motors up to 100A coil current (external MOSFETs)
5V to 30V DC voltage range
0.5A or 1.0A gate drive
3V3 switching regulator (0.5A) with internal Schottky diode (up to 100mA)

Charge pump pin to utilize buck converter for step-up converter
3 bottom shunt amplifiers
Analog programmable short detect
2 low power modes with 0.25mA standby current consumption
Diagnostics output via UART-TxD
5.0mm x 6.0mm QFN36 package; 0.5mm pitch

Applications

Industrial drives
Power tools
Robotics
Textile machines
Factory automation

Laboratory automation
Pumps
Fans
Battery operated devices

ADI Trinamic TMC6140-LA 3-Phase BLDC MOSFET Gate Driver

Features

Applications

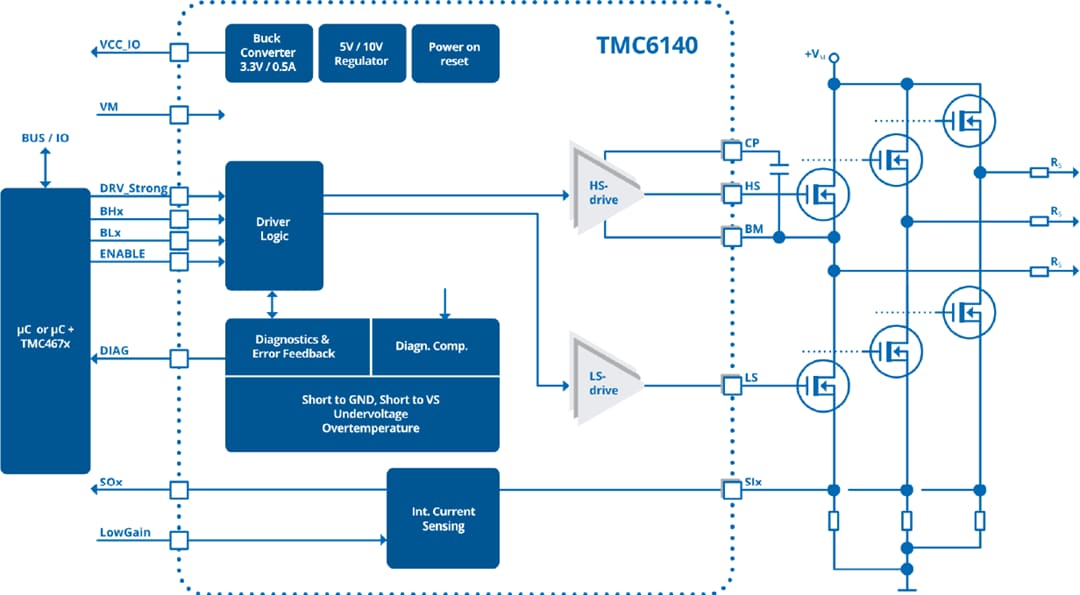

Block Diagram

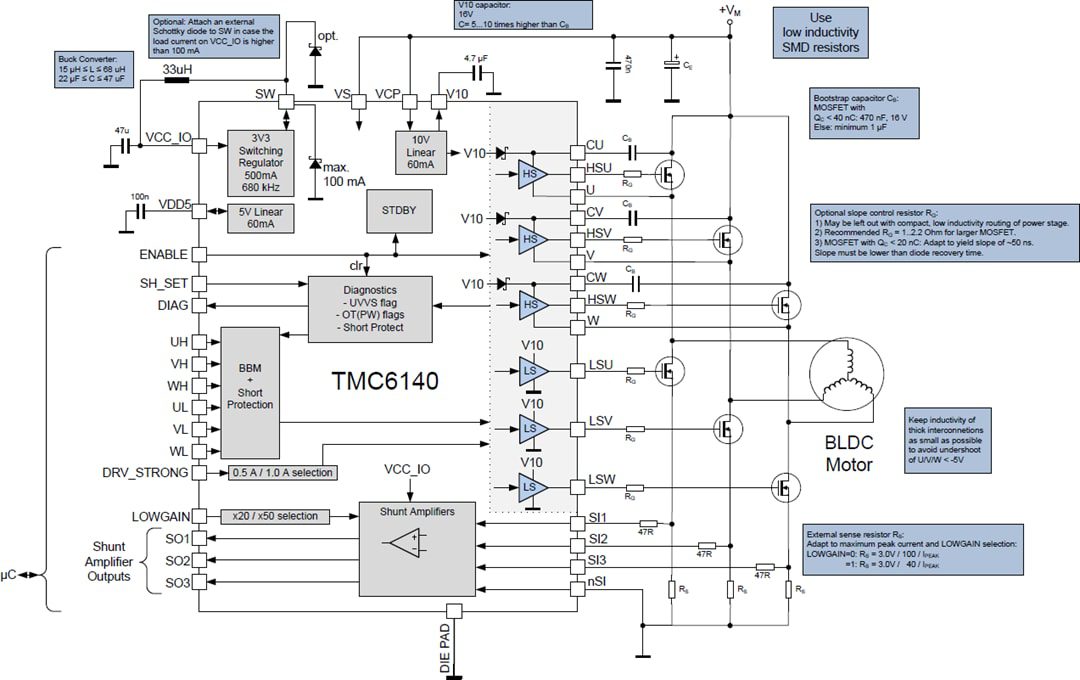

Typical Application Circuit

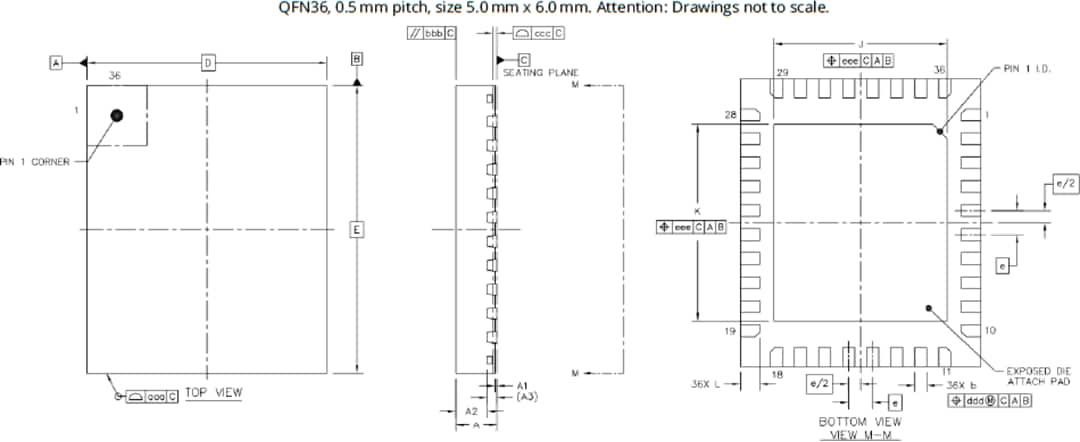

Package Outline
