ADI Trinamic TMC6100 Power Driver for BLDC/PMSM Motors

Analog Devices Inc. TMC6100 Power Driver for BLDC/PMSM Motors implements six external MOSFETs to control motors from watt to kilowatt. Software-controlled drive strength allows in-system EME optimization.

The ADI TMC6100 Power Driver offers programmable safety features like short detection and overtemperature thresholds together with an SPI interface for diagnostics that allow robust and reliable designs. The TMC6100 requires a minimum number of external components to build
a rugged drive with complete protection and diagnostics.

Features

3-phase motors up to 100A coil current (external MOSFETs)
Voltage range 8 to 60V DC
Gate drive programmable 0.5A/1A/1.5A
Full protection and diagnostics via SPI interface
Gate off drive with 1Ω (LS)/1.3Ω (HS) safe hold off resistance
SPI & stand-alone operation
Charge pump for 100% duty cycle operation

Optional BBM break-before-make logic for single line control
Programmable short and overload current threshold and retry
Programmable control interface with 3-line or 6-line drive
Full protection and diagnostics
Compact size 7mm x 7mm QFN package
Double pin distance for safe operation at high voltage

Applications

PMSM FOC drives and BLDC motors
Industrial drives
Factory automation
Lab automation
Robotics

CNC machines
Textile machines
Pumps
Surveillance cameras
Home automation
Printers

ADI Trinamic TMC6100 Power Driver for BLDC/PMSM Motors

Features

Applications

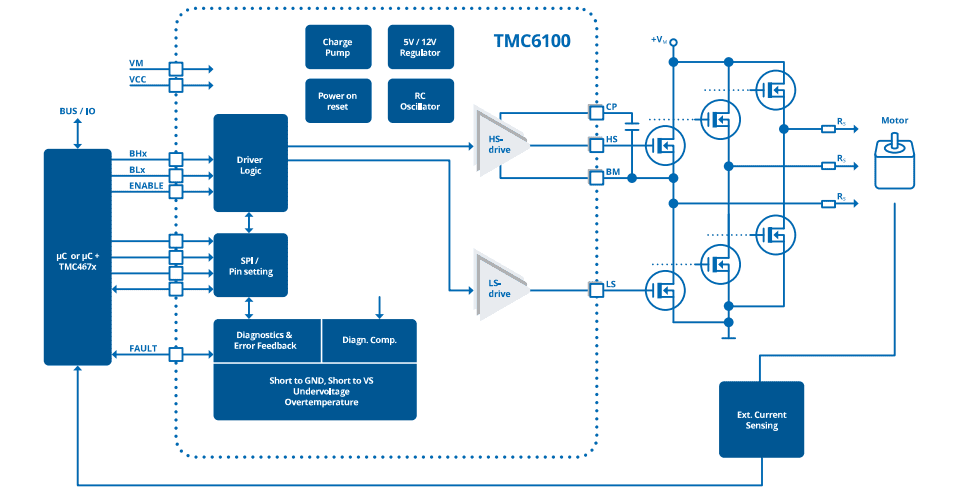

Block Diagram

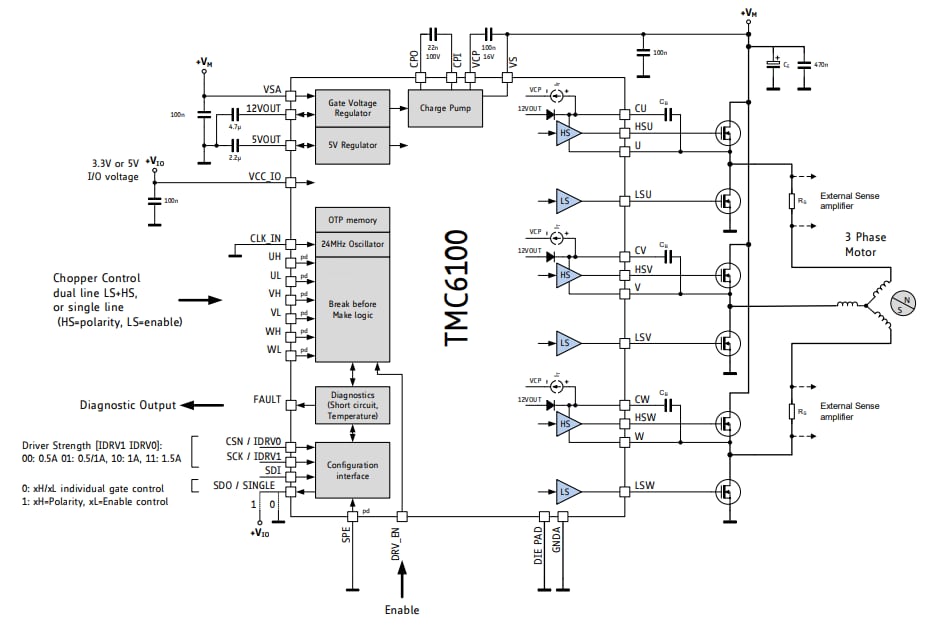

Standalone Application
