ADI Trinamic TMC4671-LEV-REF LEV Reference Design

Analog Devices Inc. TMC4671-LEV-REF LEV Reference Design is an open-source reference design for LEVs (Light Electric Vehicles). It is a BLDC servo driver for voltages up to +55V (ca. 13S) and up to 500W motor power. The ADI TMC4671-LEV-REF LEV offers a wide range of connectivity to external sensors, position feedback systems, and GPIO, as well as supports for external lights on the LEV. A CAN and a TTL UART interface are available for communication.

Features

Single-axis BLDC servo driver
Up to 500W continuous
Supply Voltage up to 13S (< 55V)
HALL sensor interface
CAN & UART communication interface

3x GPIO
Sin/Cos and torque sensor interface
External light support for LEV
Onboard MEMS motion sensor
Open-source hardware and firmware

Applications

LEV
E-bikes
AGV

Small scooters
E-Monowheels
E-Skateboards

ADI Trinamic TMC4671-LEV-REF LEV Reference Design

Features

Applications

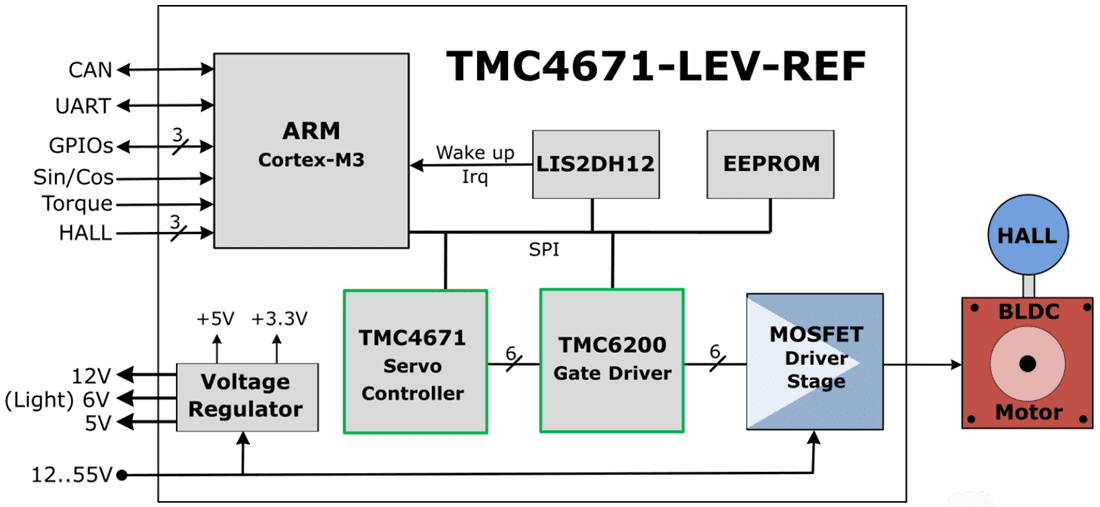

Simplified Block Diagram
