ADI Trinamic TMC2225 Stepper Driver

Analog Devices Inc. TMC2225 Stepper Driver provides an integrated motor driver solution for 3D printing, cameras, scanners, and other automated equipment applications. The TMC2225 features StealthChop silent drive technology, ensuring noiseless operation, maximum efficiency, and the best motor torque. Fast current regulation and an optional combination with SpreadCycle allow for highly dynamic motion. Integrated power-MOSFETs handle motor current up to 1.4A_RMS. Protection and diagnostic features support robust and reliable operations. A simple-to-use UART interface opens up more tuning and control options. Application-specific tuning can be stored in OTP (One-Time Programmable) memory.

The ADI TMC2225 Stepper Driver is offered in an HTSSOP package with an exposed pad for high thermal performance.

Features

Step/Dir driver for two-phase bipolar stepper motors up to 2A coil current (peak)
STEP/DIR interface with 4, 8, 16, or 32 micro-step pin setting
Smooth running 256 micro-steps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
Pin Selection for chopper scheme
Low R_DS(on) at 25°C
- Low-side: 280mΩ
- High-side: 290mΩ

4.75V to 36.0V_DC voltage range
Automatic standby current reduction option
Internal sense resistor option (no sense resistors required)
Passive braking and freewheeling
Single wire UART and OTP for advanced configuration options
Integrated pulse generator for standalone motion
Full protection and diagnostics
HTSSOP28 package
RoHS compliant

Applications

3D printers
Printers
Point of Sale
Office and home automation
Sewing machines

CCTV
Security
ATMs
Cash recyclers
HVAC

ADI Trinamic TMC2225 Stepper Driver

Features

Applications

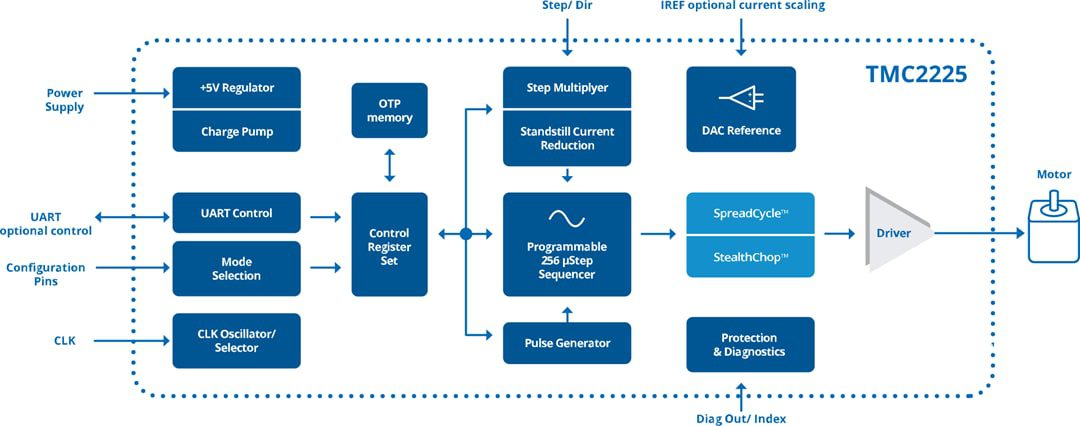

Block Diagram

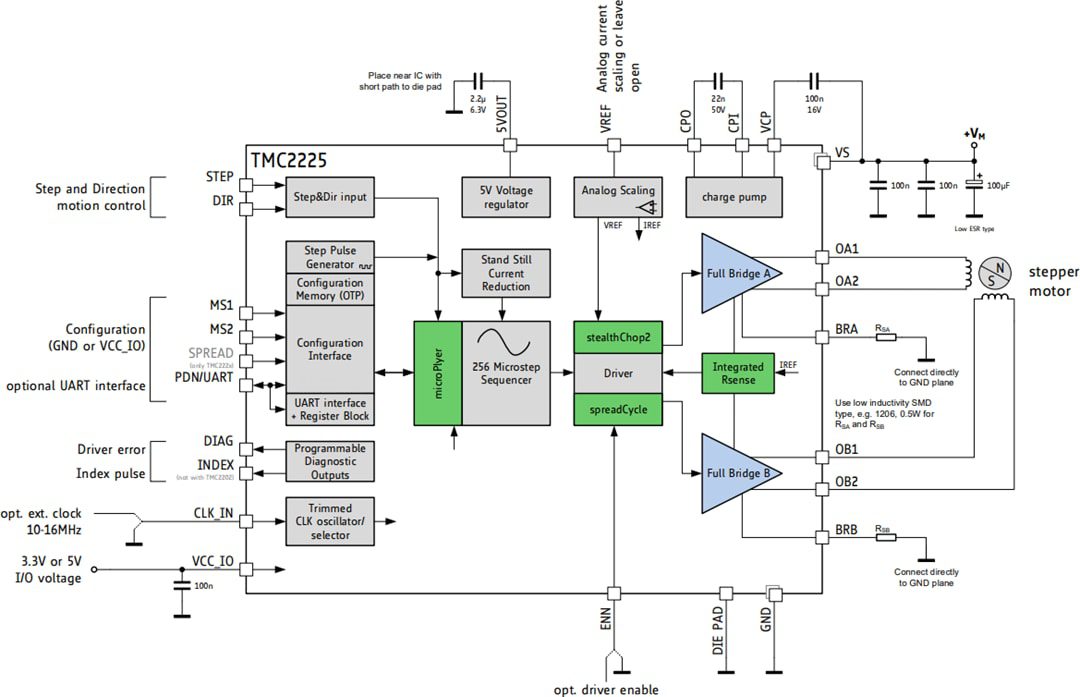

Typical Application Circuit

Package Outline
