Abracon NEL OCXO O-CE70S Oscillators

Abracon NEL Frequency Controls OCXO O-CE70S Oscillators feature a 10MHz OCXO in a 36mm x 27mm Europack. The oscillators offer an SC-cut crystal, high stability, low aging, ultra-low phase noise, and +14dBm typical sine wave output. Abracon NEL Frequency Controls OCXO O-CE70S Oscillators are ideal in instrumentation, GPS, radar, telecommunication, and COTS/dual-use applications.

Features

Europack
SC-cut crystal
High stability
Low aging
+14dBm typical sine wave output

Ultra low phase noise extraordinary (E)
- -91dBc/Hz at 0.1Hz
- -123dBc/Hz at 1Hz
- -151dBc/Hz at 10Hz
- -172dBc/Hz on the floor

Applications

Instrumentation
Telecommunication systems
GPS

Radar
COTS/Dual-use

Specifications

36mm x 27mm dimensions
-0.5V to +5.5V max input breakdown voltage range
-1V to +11V max control voltage range
10MHz frequency rating
4.75V to 5.25V input voltage range
4.096V typical reference voltage rating

1.7W max power consumption at steady state (+25°C)
4.5W max power consumption at start-up (-30°C)
10KΩ minimum input impedance
100Ω typical output impedance
0°C to +70°C operating temperature range
-50°C to +90°C storage temperature range

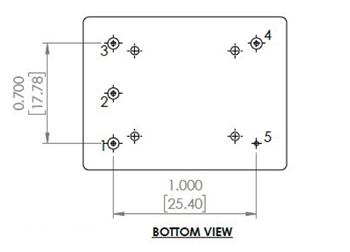

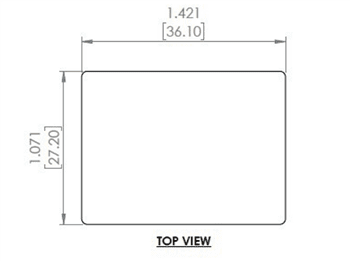

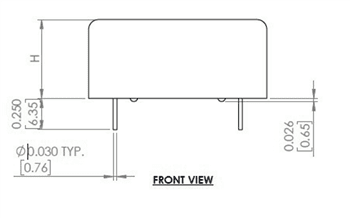

Dimensions

Chart - Abracon NEL OCXO O-CE70S Oscillators
