Abracon ATXK-H11 TCXO Oscillators

Abracon ATXK-H11 TCXO Oscillators offer a crystal output frequency of 32.768kHz with low power consumption. These crystal oscillators provide frequency stability options of ±3.8ppm, ±5ppm, and ±8ppm at various temperature conditions. The ATXK-H11 TCXO oscillators are designed with supply voltage options of 1.8V, 2.5V, and 3.3V and a maximum supply current of 2μA without load. The ATXK-H11 oscillators come in 3.28mm x 2.58mm x 1.36mm dimensions and are RoHS/RoHS II compliant. Ideally, these oscillators are used in frequency reference for Real-Time Clocks (RTCs), portable and wearable electronics, Internet-of-Things (IoT), and consumer electronics. The ATXK-H11 TCXO oscillators also help in timing synchronization for networks, servers, hubs, routers, and switches.

Features

32.768kHz crystal frequency
Frequency stability options:
- ±3.8ppm over -10°C to 60°C
- ±5.0ppm over -40°C to 85°C
- ±8.0ppm over -40°C to 105°C
Output waveform CMOS
Low power consumption
2μA supply current (without load)

Supply voltage options:
- 2.5V for option C
- 1.8V for option D
- 3.3V for option E
-40°C to 85°C operating temperature range
3.28mm x 2.58mm x 1.36mm dimensions
RoHS/RoHS II compliant

Applications

Frequency reference for Real-Time Clocks (RTCs)
Portable and wearable electronics
Internet of Things (IoT)

Consumer electronics
Timing synchronization for networks, servers, hubs, routers, and switches

Abracon ATXK-H11 TCXO Oscillators

Features

Applications

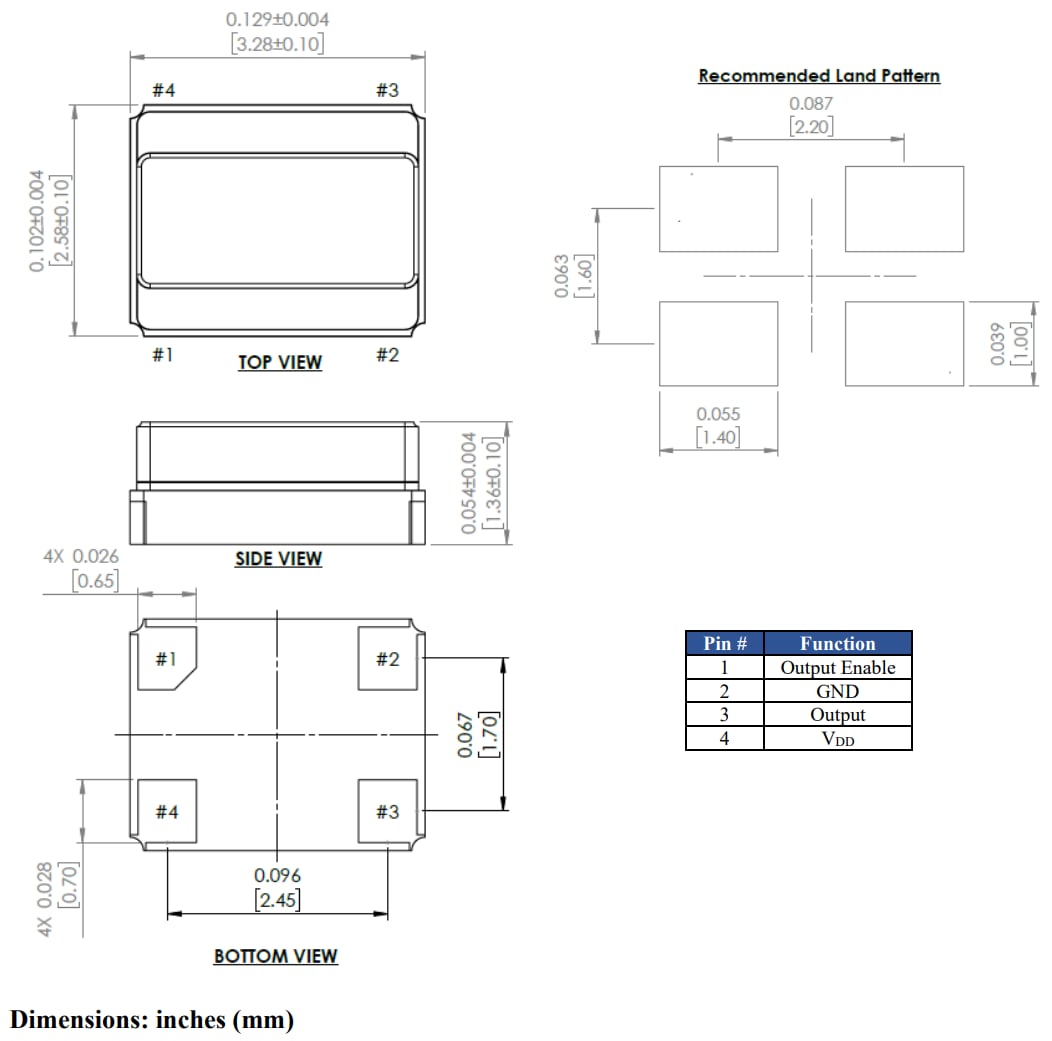

Dimensions
