Abracon ASEKDVAIG 32.768kHz Continuous Voltage Crystal XO

Abracon ASEKDVAIG 32.768kHz Continuous Voltage SMD Crystal XO comes in a package measuring 3.2mm x 2.5mm x 1.2mm and offers continuous V_DD operation from 1.62V to 3.63V. This industrial- and automotive-grade oscillator is optimized for low current consumption and features output enable/start and disable/stop functions. The module is output waveform CMOS/LVCMOS compatible and AEC-Q200 qualified. The hermetically seam-sealed ceramic package is manufactured on a TS16949-certified production line. Applications for Abracon ASEKDVAIG 32.768kHz Continuous Voltage SMD Crystal XO include infotainment systems, keyless entry and startup, comfort control, vehicle-to-vehicle communication, powertrain and drive control, and more.

Features

Optimized for low current consumption
Output enable/start and disable/stop function
Output waveform CMOS/LVCMOS compatible
Hermetically seam-sealed ceramic package

AEC-Q200 qualified
TS16949 production line certified
RoHS and RoHS II compliant

Applications

Infotainment systems
Keyless entry and startup
GPS and navigation
Comfort control
Advanced driver assistance systems (ADAS)
Vehicle-to-vehicle communication

Light detection and ranging (LiDAR)
In-vehicle networking
Powertrain and drive control
Power control and conversion
Industrial control and automation

Specifications

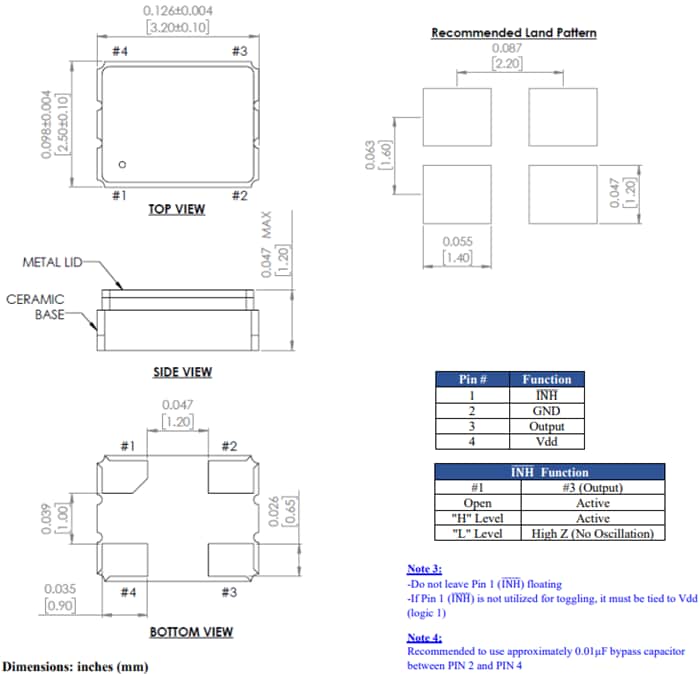

3.2mm x 2.5mm x 1.2mm dimensions
Automotive grade 1 (-40°C to +125°C temperature range)

Continuous V_DD operation from 1.62V to 3.63V
32.768kHz frequency
