Abracon ASAKDVAIG 32.768kHz Continuous Voltage Crystal XO

Abracon ASAKDVAIG 32.768kHz Continuous Voltage SMD Crystal XO features a 2.0mm x 1.6mm x 0.8mm package size and continuous V_DD operation from 1.62V to 3.63V. This automotive- and industrial-grade oscillator is optimized for low current consumption, output waveform CMOS/LVCMOS compatible, and AEC-Q200 qualified. Other features include output enable/start and disable/stop functions and moisture sensitivity level (MSL) 1. The hermetically seam-sealed ceramic package is built on a TS16949-certified production line. Abracon ASAKDVAIG 32.768kHz Continuous Voltage SMD Crystal XO is ideal for use in infotainment systems, keyless entry and startup, comfort control, advanced driver assistance systems (ADAS), in-vehicle networking, and much more.

Features

Optimized for low current consumption
Output enable/start and disable/stop function
Output waveform CMOS/LVCMOS compatible
Hermetically seam-sealed ceramic package

AEC-Q200 qualified
TS16949 production line certified
MSL 1
RoHS and RoHS II compliant

Applications

Infotainment systems
Keyless entry and startup
GPS and navigation
Comfort control
ADAS
Vehicle-to-vehicle communication

Light detection and ranging (LiDAR)
In-vehicle networking
Powertrain and drive control
Power control and conversion
Industrial control and automation

Specifications

2.0mm x 1.6mm x 0.8mm dimensions
Automotive grade 1 (-40°C to +125°C temperature range)

Continuous V_DD operation from 1.62V to 3.63V
32.768kHz frequency

Abracon ASAKDVAIG 32.768kHz Continuous Voltage Crystal XO

Features

Applications

Specifications

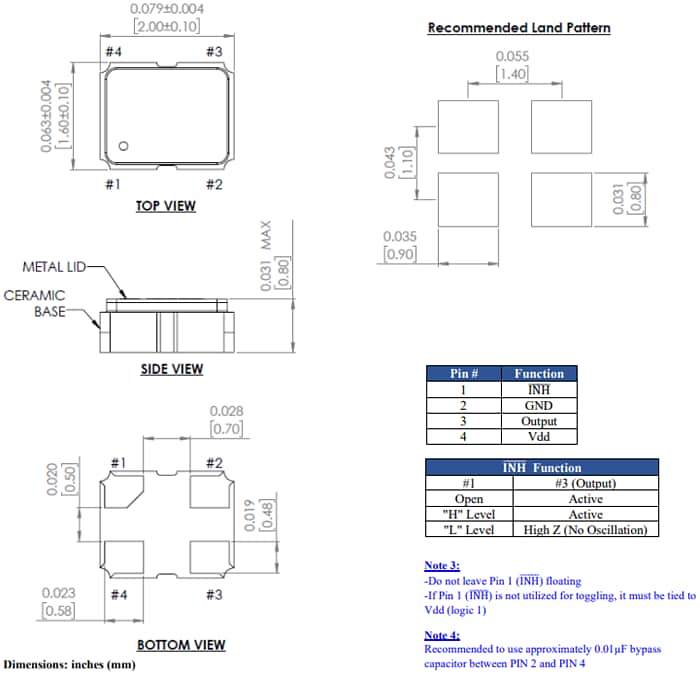

Dimensions
