Abracon AMSLA-Q7050 Automotive Stacked Inductors

Abracon AMSLA-Q7050 Automotive Stacked Inductors are high-power density inductors for switching frequencies between 100KHz to 2MHz. These AEC-Q200-qualified automotive stacked inductors provide low DC Resistance (DCR) and high efficiency. The AMSLA-Q7050 inductors come with shielded construction and a 72nH to 150nH inductance range. These inductors operate at 40V (across the inductor) and offer a 30A to 58A maximum saturation current (Isat) range. Typical applications include desktop/server applications, high current Point-of-Load (POL) converters, lighting, solar inverters, and robotics.

Features

  • AEC-Q200 qualified
  • Shielded construction
  • Soft saturation
  • High power density
  • Low DC Resistance (DCR)
  • High efficiency
  • Designed for switching frequencies between 100KHz to 2MHz

Applications

  • Desktops and servers
  • High current point-of-load (POL) converters
  • Lighting
  • Solar inverters and power
  • Industrial and robotics
  • Medium- and high-power switch mode power supplies

Specifications

  • 72nH to 150nH inductance range
  • 20% tolerance
  • 0.35mΩ maximum DC Resistance (DCR) range
  • 30A to 58A maximum saturation current (Isat) range
  • 45A maximum temperature rise current (Irms)
  • 40V operating voltage (across inductor)
  • -40°C to 125°C operating temperature range (including self-temperature rise)
  • 7mm x 7mm x 5mm dimensions
  • RoHS compliant and lead free

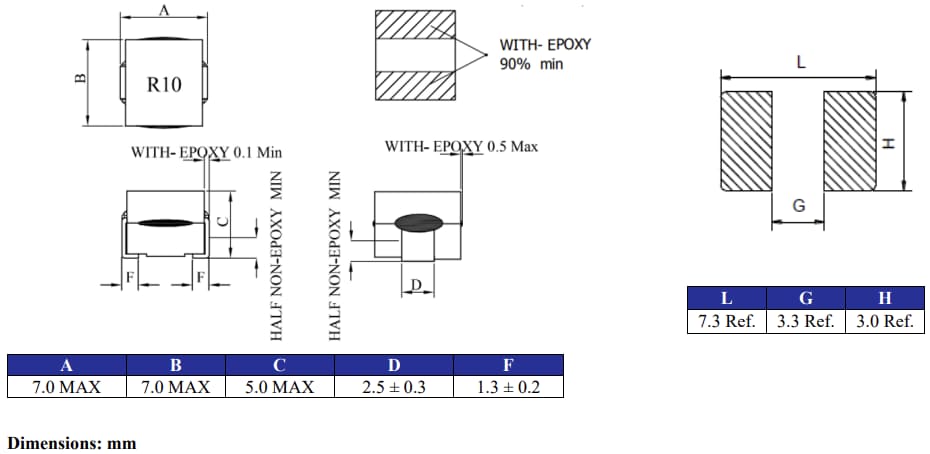

Mechanical Drawing

Mechanical Drawing - Abracon AMSLA-Q7050 Automotive Stacked Inductors
