Abracon AK2LP/3LP Low Power HCSL ClearClock™ Oscillators

Abracon AK2LP and AK3LP Low-power High-speed Current Steering Logic (HCSL) ClearClock™ Oscillators are an extension of the ClearClock product family and are available in 2.5mm x 2mm and 3.2mm x 2.5mm package sizes. The oscillators feature a 12mA to 15mA supply current capability, which makes them ideal for power-constrained devices and PCIe applications. Abracon AK2LP and AK3LP Low-Power HCSL ClearClock Oscillators offer a low RMS jitter of 117fs at 156.25MHz and ±25ppm stability over industrial operating temperatures. The oscillators are RoHS-compliant and available in Abracon’s global distribution network.

Features

Extension of ClearClock line of products
117fs RMS jitter at 156.25MHz
100MHz to 156.25MHz industry-standard frequency range
±25ppm stability over industrial operating temperatures

1.8V, 2.5V, 3.3V, 1.71V to 3.63V continuous supply voltage options
2.5mm x 2mm and 3.2mm x 2.5mm industry-standard footprints
Based on third overtone, quartz crystal technology
Output enable (Pad 1 or Pad 2 Active High) options available

Applications

Optical transceivers and modules
Data centers
Data storage
Data servers
Networking switches and gateways

Ethernet (100G/200G/400G/800G)
Fibre channel/SONET/SDH/PCIe
FPGA and industrial
Test and measurement

Specifications

100MHz to 156.25MHz frequency range
1.71V to 3.63V supply voltage range
12mA to 15mA typ. supply current range at 100MHz to 156.25MHz

-40°C to +85°C operating temperature range
-55°C to +150°C storage temperature range
-10ppm to +10ppm frequency tolerance range

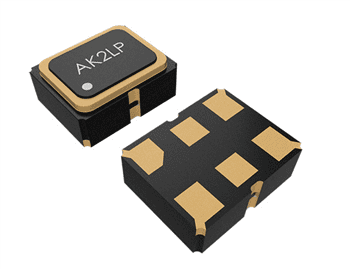

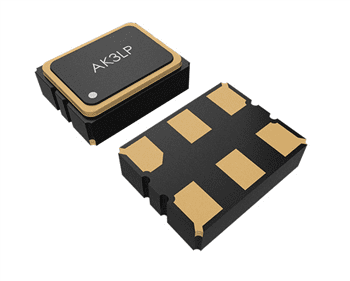

Product Images

Chart - Abracon AK2LP/3LP Low Power HCSL ClearClock™ Oscillators
