View Datasheet

Abracon AECP0401G4Z GNSS Automotive-Grade Puck Antenna

Abracon AECP0401G4Z GNSS Automotive-Grade Puck Antenna features a center frequency range of 1561MHz to 1602MHz and a high gain of 5dBi. The IP67-rated device utilizes a built-in magnet for easy installation and is IATF 16949 automotive-certified. Abracon AECP0401G4Z GNSS Automotive-Grade Puck Antenna is designed for GNSS / GPS / GLONASS / BeiDou / QZSS applications.

Features

  • Automotive grade
  • IATF 16949 automotive certified
  • GNSS / GPS / GLONASS / BeiDou / QZSS
  • 5dBi high gain
  • 28±2dB high LNA gain
  • Right-hand circular polarized (RHCP)
  • IP67 rated
  • Easy installation using the built-in magnet

Applications

  • Internet of Things (IoT)
  • Machine-to-machine (M2M)
  • Automotive
  • Geolocation tracking
  • Vehicle tracking
  • Fleet management
  • Smart city
  • Transportation
  • Smart agriculture

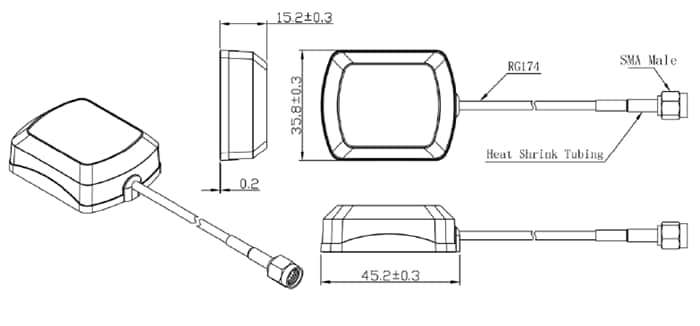

Dimensions (mm)

Abracon AECP0401G4Z GNSS Automotive-Grade Puck Antenna
