Abracon ADID Multilayer Chip RF Diplexers

Abracon ADID Multilayer Chip RF Diplexers are low-temperature co-fire ceramic (LTCC) devices that support 2400MHz to 2500MHz, 4900MHz to 5950MHz, and 5150MHz to 7125MHz frequency ranges. The diplexers feature low insertion loss ratings and a low voltage standing wave ratio (VSWR) within a small form factor. The Abracon ADID RF Diplexers are RoHS compliant and ideal for various applications. Typical applications include Wi-Fi® 6/6E, Wi-Fi speakers/soundbars, video streaming, network cameras, virtual reality (VR) devices, car infotainment systems, transportation, and broadband gateways.

Features

LTCC diplexers
Supports 2400MHz to 2500MHz, 4900MHz to 5950MHz, and 5150MHz to 7125MHz

Small 1mm x 0.5mm x 0.38mm/0.4mm form factor
RoHS compliant

Applications

Wi-Fi 6/6E standards
Wi-Fi speakers and soundbars
Video streaming
Network cameras
VR head-mount displays

Car infotainment systems
Broadband gateways
Aircraft equipment
Transportation equipment
Data-processing equipment

Specifications

ADID-R-0004
- 10dB min return loss
- 2W power capacity
- -40°C to +85°C operating temperature range
- -10°C to +45°C storage temperature range
- 2400MHz to 2500MHz center frequency range
  - 0.50dB max insertion loss at +25°C
  - 0.65dB max insertion loss at operating temperature range
  - 15dB to 20dB absolute attenuation range
  - 24dB min isolation rating
- 5150MHz to 7125MHz center frequency range
  - 0.9dB max insertion loss at +25°C
  - 1.1dB max insertion loss at operating temperature range
  - 8dB to 26dB absolute attenuation range
  - 16.5dB min isolation rating

ADID-R-0005
- 2W power capacity
- 23dB to 27dB min isolation range
- -40°C to +85°C operating temperature range
- -10°C to +45°C storage temperature range
- 2400MHz to 2500MHz center frequency range
  - 0.6dB max insertion loss at +25°C
  - 23dB absolute attenuation
  - 14dB min return loss
- 4900MHz to 5950MHz center frequency range
  - 0.95dB max insertion loss at +25°C
  - 20dB to 27dB absolute attenuation range
  - 12dB min return loss

Abracon ADID Multilayer Chip RF Diplexers

Features

Applications

Specifications

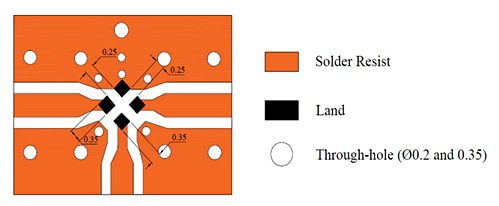

Recommended PCB Layout
