Abracon ACR1004GC GNSS + GPS L5 Chip Antenna

Abracon ACR1004GC GNSS + GPS L5 Chip Antenna is a compact, low-profile loop antenna that provides centimeter-level accuracy and high efficiency of up to 80%. The ACR1004GC offers L1 peak gain of 2.85dBi and L5 peak gain of 1.91dBi and operates in the 1.166GHz to 1.186GHz and 1.561GHz to 1.61GHz frequencies. Other features include multiband (upper band GNSS + GPS L5), linear polarization, and omnidirectional azimuth pattern. The antenna dimensions are 10mm x 4mm x 1.5mm. Abracon ACR1004GC GNSS + GPS L5 Chip Antenna is ideally suited for M2M, automotive, tracking, and smart applications.

Features

Compact, low-profile loop antenna
Centimeter level accuracy
Multiband – upper band GNSS + GPS L5
Linear polarization

Omnidirectional azimuth pattern
High efficiency, up to 80%
RoHS/RoHS II compliant

Applications

IoT
M2M
Automotive
Tracking

Fleet management
Smart agriculture
Smart cities

Specifications

1.166GHz to 1.186GHz, 1.561GHz to 1.61GHz operating frequencies
2.85dBi L1 peak gain
1.91dBi L5 peak gain

-12dB return loss
50Ω impedance
10mm x 4mm x 1.5mm dimensions
-40°C to +85°C operating temperature range

Abracon ACR1004GC GNSS + GPS L5 Chip Antenna

Features

Applications

Specifications

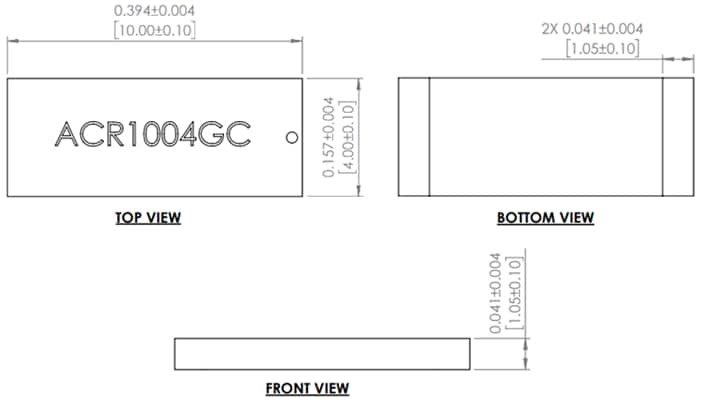

Dimensions In. [mm]
