Abracon ACMx Commercial-Grade Common Mode Chokes

Abracon ACMx Commercial-Grade Common Mode Chokes are power/signal line chokes featuring a ferrite core, enabling high reliability and a broad impedance range. The ACMx components offer superior noise suppression and shielding to prevent interference. The Abracon ACMx commercial-grade common mode chokes are designed to meet the performance, reliability, and cost needs of the most challenging design-constrained applications in the industrial, consumer, and communications markets.

Features

  • Commercial-grade
  • PPAP ready and supported
  • Excellent impedance characteristics
  • Single channel
  • Ferrite core
  • Enameled copper wires
  • Surface mount
  • Reflow solderable
  • Moisture Sensitivity Level (MSL) 1
  • RoHS/RoHS II compliant

Applications

  • ACMP
    • DC power line common mode noise suppression
    • Switch mode power supplies and regulators
    • Variable frequency drives
    • AC/DC power rectifiers
  • ACMS
    • Signal line common mode noise suppression
    • Differential signaling lines
    • Multimedia devices

Specifications

  • 120µH to 4.7mH inductance range
  • 70Ω to 3000Ω impedance range
  • 350mA to 15A maximum DC current range
  • 3mΩ to 720mΩ maximum DC resistance range
  • -40°C to +125°C operating temperature range

Schematics

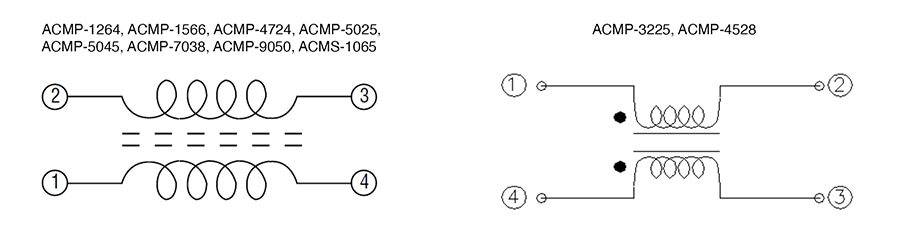

Schematic - Abracon ACMx Commercial-Grade Common Mode Chokes
