Abracon ABSES5AD/AF Precision Location SAW Filters

Abracon ABSES5AD/AF Precision Location Surface Acoustic Wave (SAW) Filters are designed with superior attenuation and insertion loss to support various markets. These SAW filters are optimized for peak performance at 915MHz and 1582.4MHz. The ABSES5AD/AF SAW filters offer low power consumption and compact sizes, which makes them ideal for mobile devices and battery-operated designs. These SAW filters operate within the -40°C to 85°C industrial-grade temperature range and are RoHS compliant. Typical applications include RF modules, satellite communication/navigation, and IoT.

Features

Low insertion loss
Low power consumption
Compact size

Ideal for mobile devices and battery-operated designs
RoHS compliant

Specifications

ABSES5AD-1E3M012M:
- 915MHz typical center frequency
- 1.6dB typical insertion loss
- 0.6dB typical amplitude ripple
- 1.5 typical VSWR
- 1.4mm x 1.1mm x 0.7mm dimensions
ABSES5AD-L100KM:
- 1582.4MHz typical center frequency
- 3V maximum DC voltage
- 1.4mm x 1.1mm x 0.7mm dimensions

ABSES5AF-L100KM:
- 1582.4MHz typical center frequency
- 20ns maximum group delay
- 3V maximum DC voltage
- 1.1mm x 0.9mm x 0.7mm dimensions

Applications

RF modules
Satellite communication/navigation

Information and communications devices
IoT

Abracon ABSES5AD/AF Precision Location SAW Filters

Features

Specifications

Applications

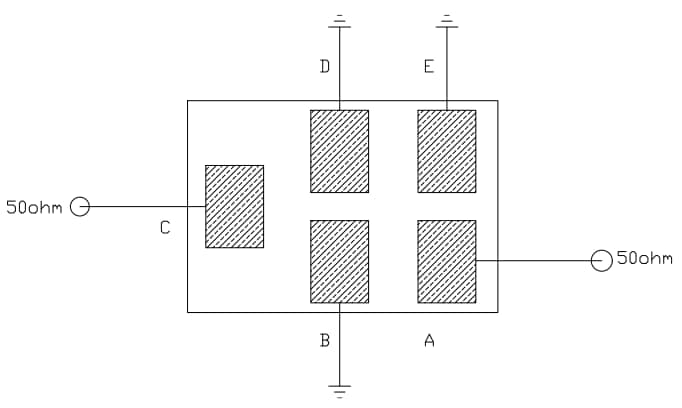

Measurement Circuit
