Abracon AB-x36C VCXO Oscillators

Abracon AB-x36C Voltage-controlled Crystal Oscillators (VCXO) feature a wide 12MHz to 280MHz frequency range and a high-reliability capability. The oscillators are NEL HALT/HASS-qualified with an ultra-low phase noise and jitter. The AB-x36C series provides high shock resistance, no multiplication, and an absolute pull range (APR) of up to ±1000ppm. The Abracon AB-x36C VCXO Oscillators are ideal for various applications, including fiber channel, 10GbE, Infiniband, network processors, SONET/SDH, and COTS/dual-use.

Features

Wide frequency range
High reliability
NEL HALT/HASS-qualified for crystal oscillator start-up conditions
Ultra-low phase noise and jitter

High shock resistance
No multiplication
±1000ppm APR
14.35mm x 9.27mm x 6.48mm dimensions

Applications

Fiber channel
10GbE
Infiniband

Network processors
SONET/SDH
COTS/Dual-use

Specifications

12MHz to 280MHz nominal frequency
4.75V to 5.25V supply voltage range
80mA max supply current rating
-70dBc/Hz to -145dBc/Hz phase noise
50Ω output load

50KΩ input impedance
20KHz modulation bandwidth
-40°C to +85°C operating temperature range
-50°C to +90°C storage temperature range

Abracon AB-x36C VCXO Oscillators

Features

Applications

Specifications

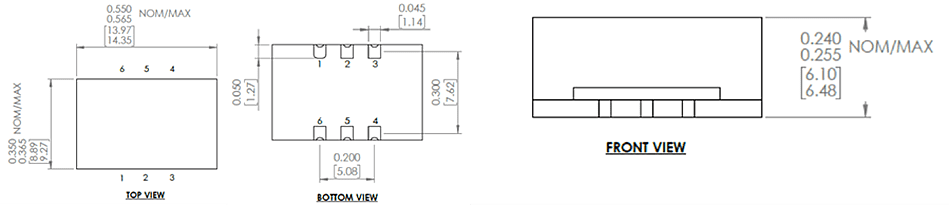

Dimensions (mm)
