Abracon AANI-NI-0012 Stamped Metal Niche Antenna

Abracon AANI-NI-0012 Stamped Metal Niche Antenna is a cost-effective, low-profile device ideal for tri-band Wi-Fi® 6E and Wi-Fi 7 and dual-band Wi-Fi 6 applications. This SMD antenna is based on technology patented by Abracon and delivers robust performance even in solutions that require potting, coating, or overmolds. The AANI-NI-0012 is highly efficient and offers a low return loss of <-6.2dB, linear polarization, and 12mm x 7m x 0.72mm dimensions. Abracon AANI-NI-0012 Stamped Metal Niche Antenna is designed for integration along the PCB edge. In addition to Wi-Fi tri-band and dual-band applications, the AANI-NI-0012 is also ideal for IoT, M2M, wearables, industrial and commercial equipment, wireless remote controls, and more.

Features

Cost-effective antenna
Low profile
SMD mounting type
Robust performance even when employed in solutions requiring potting / coating / overmold

Based on technology patented by Abracon
Highly efficient
Low return loss
Integrates along PCB edge
Linear polarization

Applications

Tri-band Wi-Fi (Wi-Fi 6E, Wi-Fi 7)
Wi-Fi dual-band (Wi-Fi 6)
IoT, M2M
Wearables

Wireless remote controls
Personal area networks (PAN)
Industrial and commercial equipment

Specifications

2400MHz to 2500MHz / 5150MHz to 7125MHz operating frequency
Return loss
- <-6.2dB (5150MHz to 7125MHz)
- <-7.1dB (2400MHz to 2500MHz)
Peak gain
- 3.2dBi (2400MHz to 2500MHz)
- 4.2dBi (5150MHz to 7125MHz)

Efficiency
- >-1.7dB (68%) (2400MHz to 2500MHz)
- >-2.8dB (52%) (5150MHz to 7125MHz)
50Ω impedance
12mm x 7m x 0.72mm dimensions
Moisture sensitivity level (MSL) 1
RoHS / RoHS II compliant

Abracon AANI-NI-0012 Stamped Metal Niche Antenna

Features

Applications

Specifications

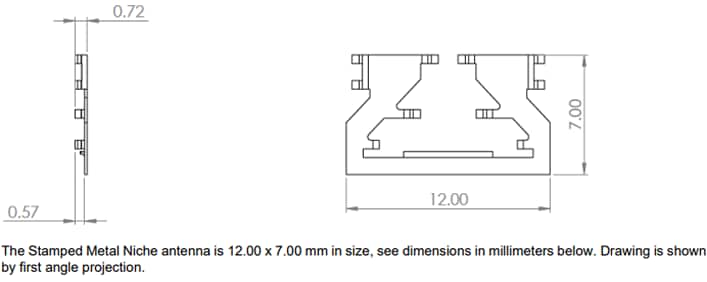

Dimensions
