ABLIC S-57RB S Hall Effect Sensors

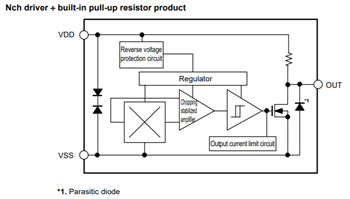

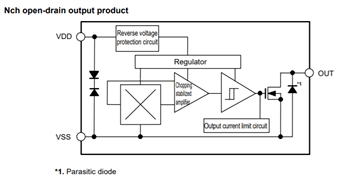

ABLIC S-57RB S Hall Effect Sensors are high-accuracy hall effect latch ICs developed by CMOS technology that operates with high temperature and high-withstand voltage. The output voltage level changes when the ICs detect the intensity level of magnetic flux density and a polarity change. The S-57RB magnetic sensors offer a “magnetic simulation service” that provides the ideal combination of magnets and hall effect ICs. This magnetic simulation service reduces prototype production, development period, and development costs. These magnetic sensors feature a built-in regulator, built-in reverse-voltage protection circuit, and built-in output current limit circuit. The S-57RB hall effect sensors operate at -40°C to 150°C temperature range. Typical applications include automobile equipment, housing equipment, industrial equipment, and DC brushless motor for automotive applications.
