AAEON UP Xtreme i11 Edge Compute Enabling Systems

AAEON UP Xtreme i11 Edge Compute Enabling Systems offer the next generation in edge computing with 5G, powered by the lntel^® 11th Gen Core™ processors with Iris^® X^e graphics. The Systems provide an M.2 3052 slot to support 5G modules enabling ultra-low latency and reliable data transmission to/from masses of IoT devices. The Iris Xe graphics deliver up to 96EUs, while the Intel Ethernet runs 2.6Gb/s.

The AAEON UP Xtreme i11 Edge Compute Enabling Systems feature seamless connectivity, exceptional graphics, and I/O options that boost speed, reliability, and efficiency. The UP Xtreme i11 Edge ensures the convergence of 5G, AI, Cloud Computing, Data Analytics, and IIOT.

Features

UP Xtreme i11 Edge with an Intel® 11th Gen Core SoC, up to 4.4GHz
- Intel Core i7-1185GRE
- Intel Core i5-1145GRE
- Intel Core i3-1115GRE
- Intel Celeron® 6305E
Intel® UHD Graphics (Celeron/ Core™ i3) / Intel® Iris Xe (Core™ i5 & i7)

Applications

Robotics
Vision
Industrial automation

Retail
Healthcare

Specifications

15W to 28W Depends on CPU processor TDP
VPU via UP AI Core XM2280
Intel® Iris® Xe Graphics
Intel® FPGA Altera MAX 5

2x 8GB 3200Mhz SO-DIMM Modules system memory
Storage capacity of 1x 128GB 2.5” SSD
1 x 1GbLAN (i219), 1x 2.5Gb LAN (i225) Ethernet

AAEON UP Xtreme i11 Edge Compute Enabling Systems

Features

Applications

Specifications

System Overview

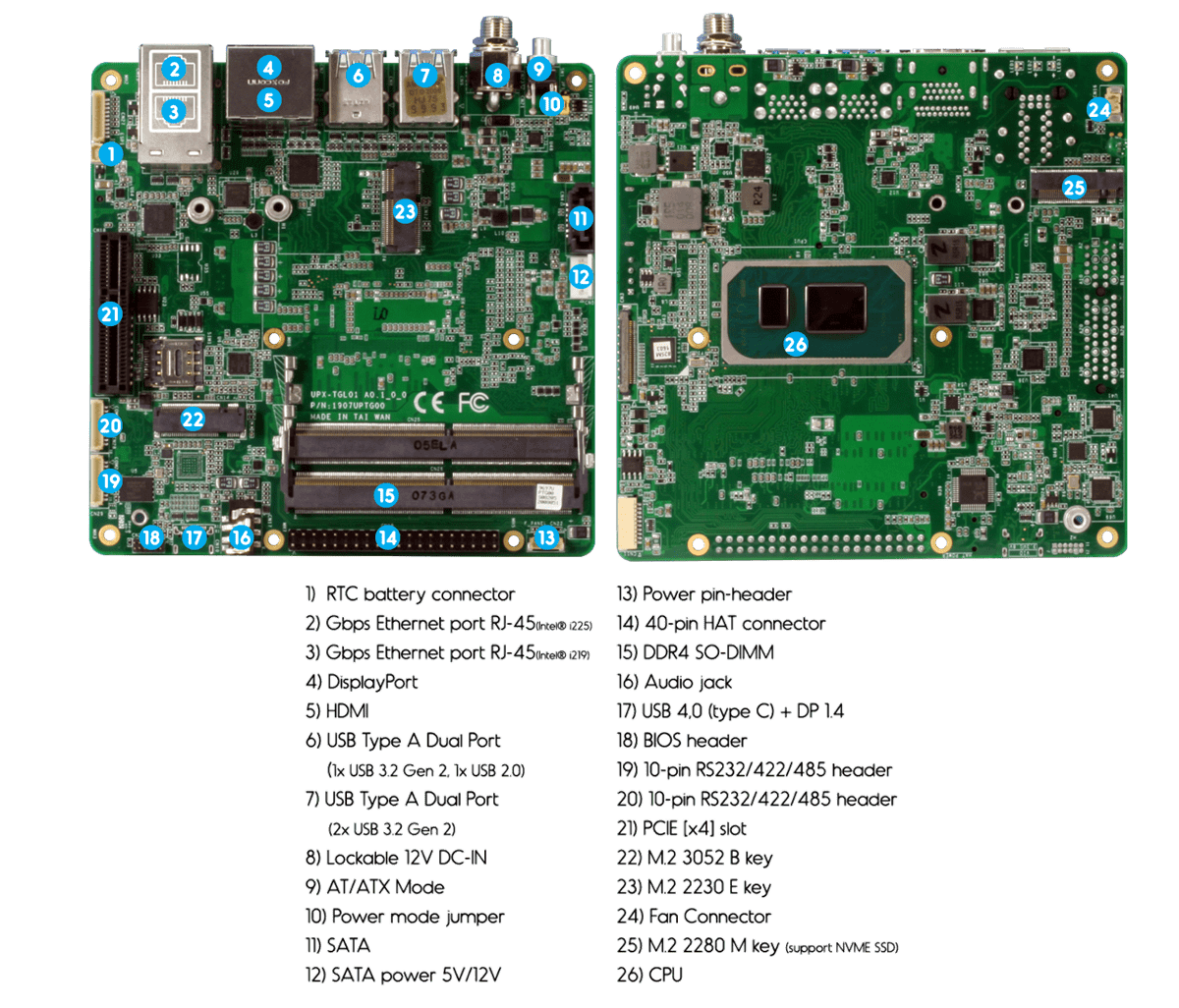

Board Overview

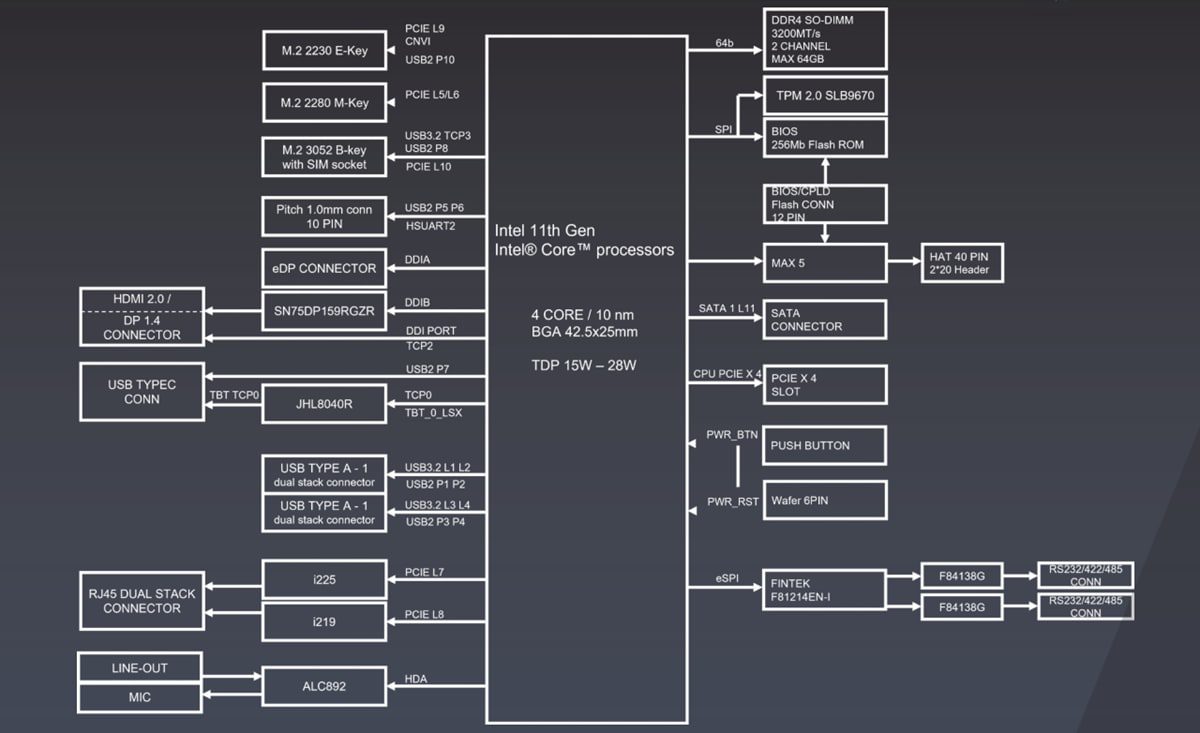

Block Diagram
