AAEON UP Fibocom FM150 5G Module

AAEON UP Fibocom FM150 5G Module provides a turnkey solution for adding pre-certified 5G wireless connectivity to any device or application. Based on the Qualcomm Snapdragon SDX55 Chipset, the FM150 supports 5G SA and NSA network architectures with fast transmission speed, high carrying capacity, and low network latency. AAEON UP Fibocom FM150 5G Module supports the 5G NR Sub-6 band and is compatible with LTE and WCDMA standards. This compatibility eliminates investment concerns in the initial stage of 5G construction and responds to the commercial demand of rapid landing.

Features

Qualcomm Snapdragon SDX55 chipset
Supports SA and NSA network architectures
Supports 5G Sub-6, ENDC, LTE, WCDMA
Interfaces
- GPIO
- 1x I²S
- 2x UIM
- 1x USB 3.1/3.0
- 1x USB 2.0
- 1x PCIe 3.0

AT command set: 3GPP TS 27.007 and 27.005, proprietary Fibocom AT commands
4x U.FL antenna connectors
GNSS：GPS, GLONASS, BeiDou, Galileo, QZSS
Supports FOAT, DFOTA, VoLTE, Audio, eSIM (optional)
3.135V to 4.4V operating voltage range, 3.8V typical
-30°C to +75°C operating temperature range

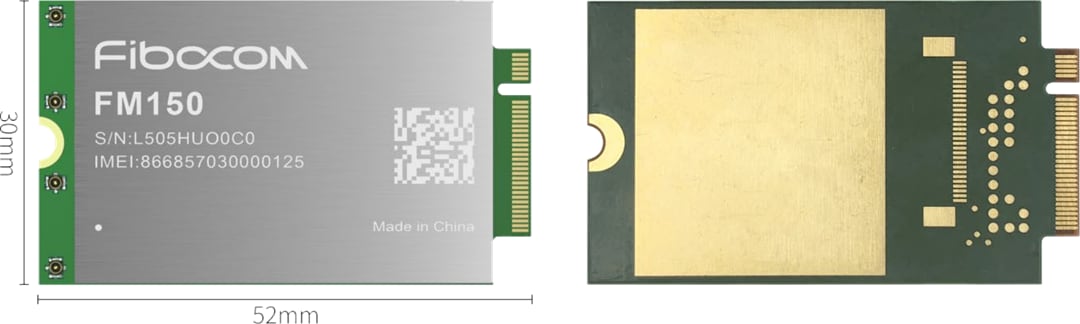

M.2 form factor (30.0mm x 52.0mm x 2.3mm dimensions)

Applications

Tablets
Always Connected PCs (ACPC)
Gateways

Remote medical treatment
Industrial monitoring
Virtual and augmented reality
