Zipcores ZIP-FMC-SDI Mezzanine Card

Zipcores ZIP-FMC-SDI Rev. A Mezzanine Card is a dual-channel SDI video signal receiver with additional loop-through outputs and uses a simple LVDS interface. The SDI inputs are completely independent and are capable of deserializing all standard SMPTE serial video formats from 125Mbps up to 2.97Gbps. This card conforms to the ANSI/VITA 57.1 FMC™ mezzanine standard, ensuring connection to a wide range of base-boards and FMC-compliant systems. The simple LVDS interface makes this card suitable for a wide range of FPGA and SoC devices that don’t feature high-speed serial transceivers. Zipcores ZIP-FMC-SDI Mezzanine Card is suitable for simple video processing and for switching and pass-through applications without needing a video frame buffer or external synchronization circuitry.

Features

  • 2x SDI video inputs (75Ω nominal)
  • 2x SDI video loop-through outputs (75Ω nominal)
  • 4x standard BNC (right angle) female connectors
  • Standard ANSI/VITA 57.1 FMC LPC connector
  • Compatible with FMS-HPC and FMC+
  • Support for 3G-SDI, HD-SDI, ED-SDI, SD-SDI, and DVB-ASI
  • Support for 120m coaxial cable at 3G-SDI rates
  • 2x adaptive cable equalizers from TI
  • 2x SDI-to-LVDS de-serializers from TI
  • Carrier detect and video-locked indicator LEDs
  • Manual jumper settings for bypass, mute, and loop-through mode
  • 5x pairs of LVDS data and 1x LVDS clock
  • Programmable H/W resets for each channel
  • Main power drawn from the 12V pin on the FMC connector
  • Compatible with all FMC VADJ settings up to 2.5V
  • 2x general-purpose PMOD™ headers for debug and GPIO
  • 2x M3 mounting holes for securing the FMC connector
  • 2x M3 mounting holes for supporting standoff ‘legs’
  • Compatible with a wide range of FMC base-boards

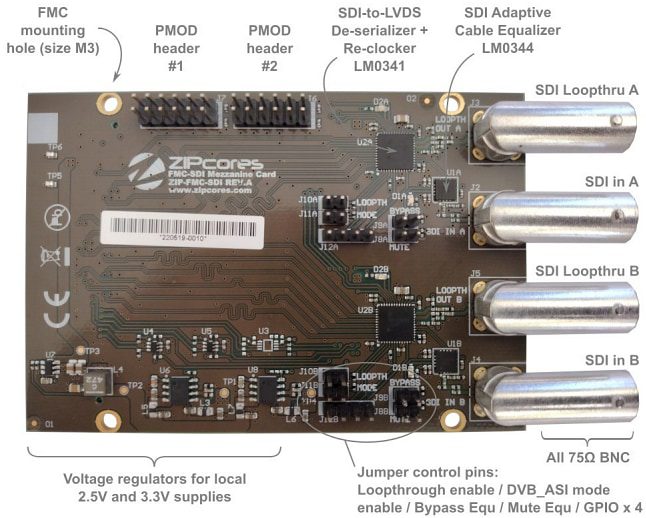

Board Layout

Zipcores ZIP-FMC-SDI Mezzanine Card

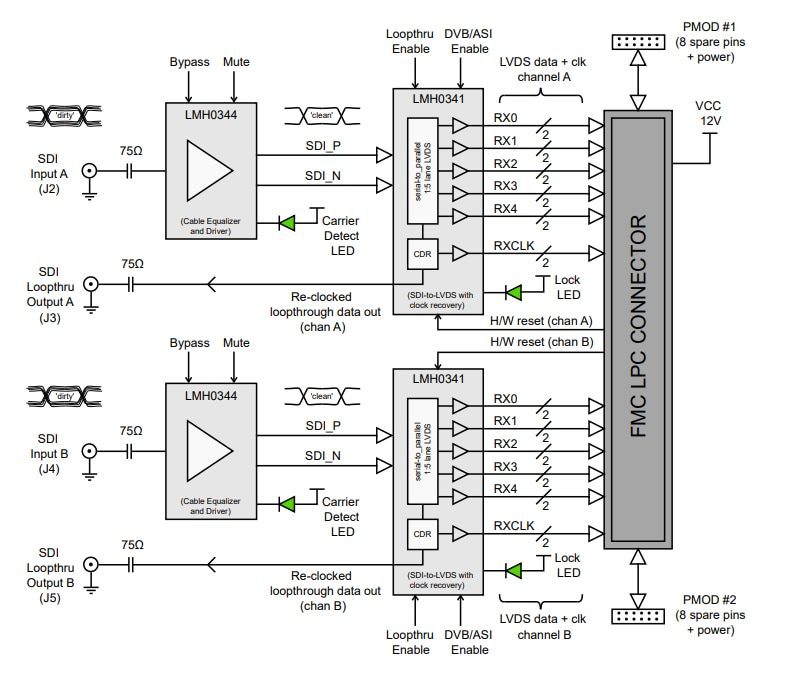

Block Diagram

Zipcores ZIP-FMC-SDI Mezzanine Card

Zipcores ZIP-FMC-SDI Mezzanine Card
