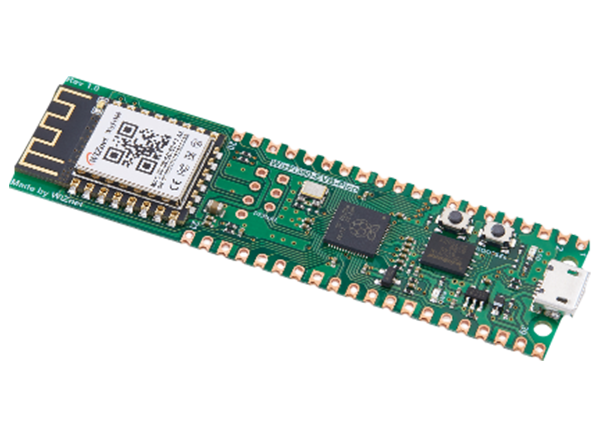

WIZnet WizFi360-EVB-Pico Evaluation Board

WIZnet WizFi360-EVB-Pico Evaluation Board is based on the Raspberry Pi RP2040. It adds Wi-Fi connectivity using the WizFi360. It’s pin-compatible with Raspberry Pi Pico board and can be used for IoT Solution development.

Features

  • RP2040 microcontroller with 2MByte Flash
    • Dual-core Cortex M0+ at up to 133MHz
    • 264kByte multi-bank high-performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
  • Includes WizFi360-PA
    • WiFi 2.4G, 802.11 b/g/n
    • Support Station / SoftAP / SoftAP+Station operation modes
    • Support “Data pass-through” and “AT command data transfer” mode
    • Support serial AT command configuration
    • Support TCP Server / TCP Client / UDP operating mode
    • Support configuration of operating channel 0 ~ 13
    • Support auto 20MHz / 40MHz bandwidth
    • Support WPA_PSK / WPA2_PSK encryption
    • Support built-in unique MAC address and user-configurable
    • Industrial grade (operating temperature range: -40 ° C ~ 85 ° C)
    • CE, FCC certification
  • Includes 16M-bit Flash Memory
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Built-in LDO

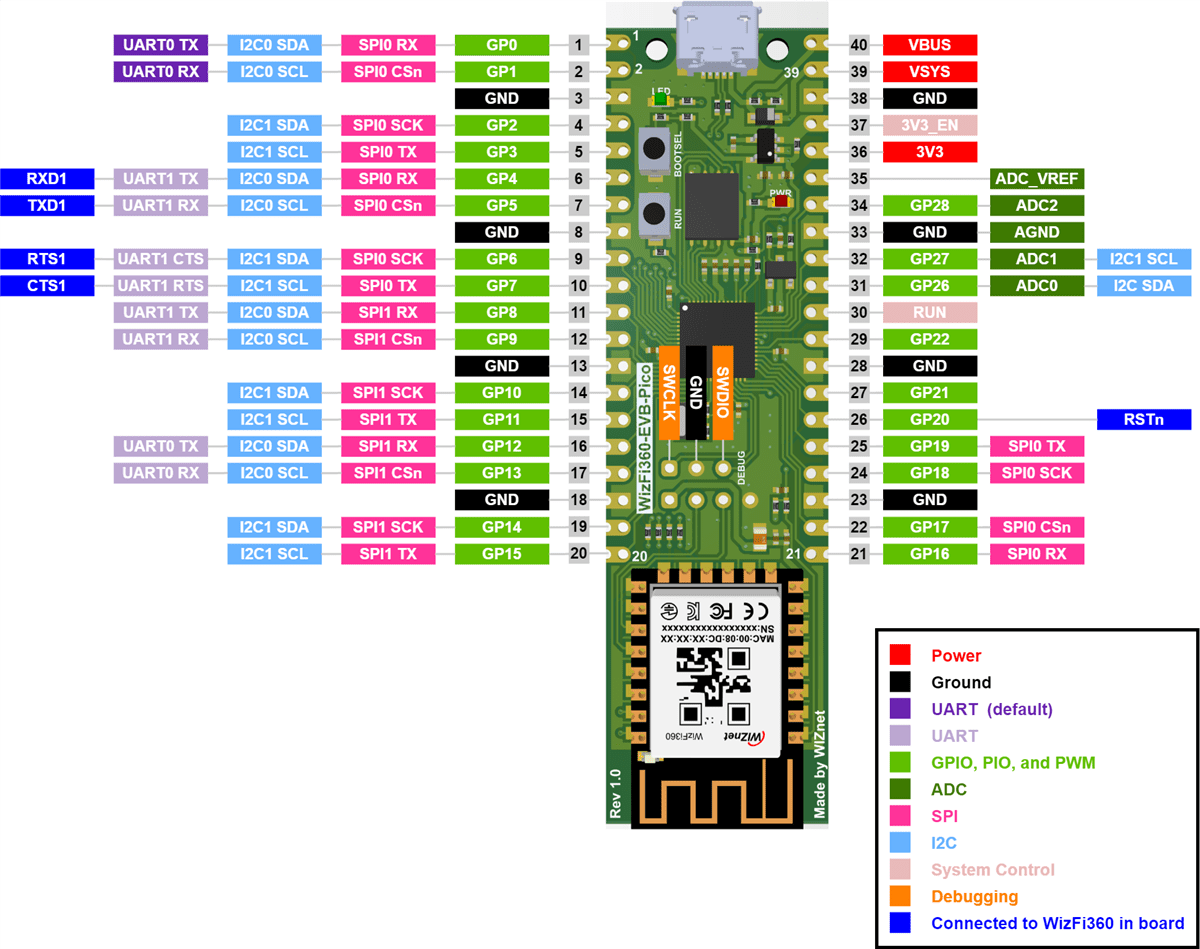

Pin-out
