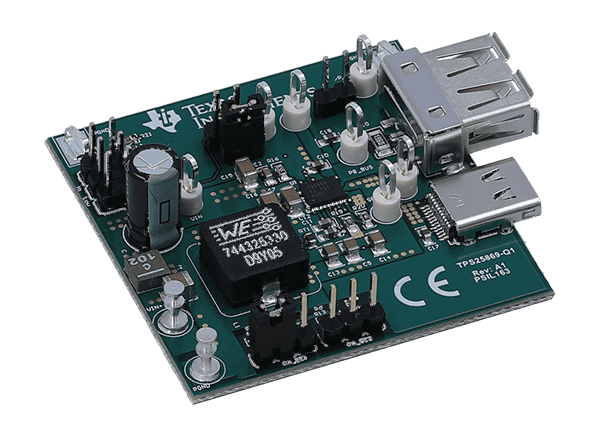

Texas Instruments TPS25869Q1EVM-163 Evaluation Module (EVM)

Texas Instruments TPS25869Q1EVM-163 Evaluation Module (EVM) is designed to help evaluate TI’s TPS25869-Q1 USB Type-C® and type-A ports. These ports can provide up to 5.6A output current, 2.4A for Type-A port, 3A for Type-C port, and 200mA for output. The Texas Instruments TPS25869Q1EVM-163 operates over a range from 5.5V to 26V and withstands 40V transient voltage. Resistors can adjust the switching frequency on the evaluation module. It’s also integrated with a Fault indicator and separate on and off control.

Features

5.5V to 26V input range, 2.4A continuous output current buck converter for Type-A port, and 3A for Type-C port
200mA capability for OUT pin, 200mA capability for VCONN power meeting for USB3.1 power requirement
Fully AEC-Q100 qualified

Forced PWM operation with Spread-Spectrum dithering at 200kHz–800KHz
Smart thermal management
User-programmable VBUS current limit and internal VCONN current limiting

Applications

Automotive
- USB media hubs
- USB charging ports
- Aftermarket dual USB chargers

Texas Instruments TPS25869Q1EVM-163 Evaluation Module (EVM)

Features

Applications

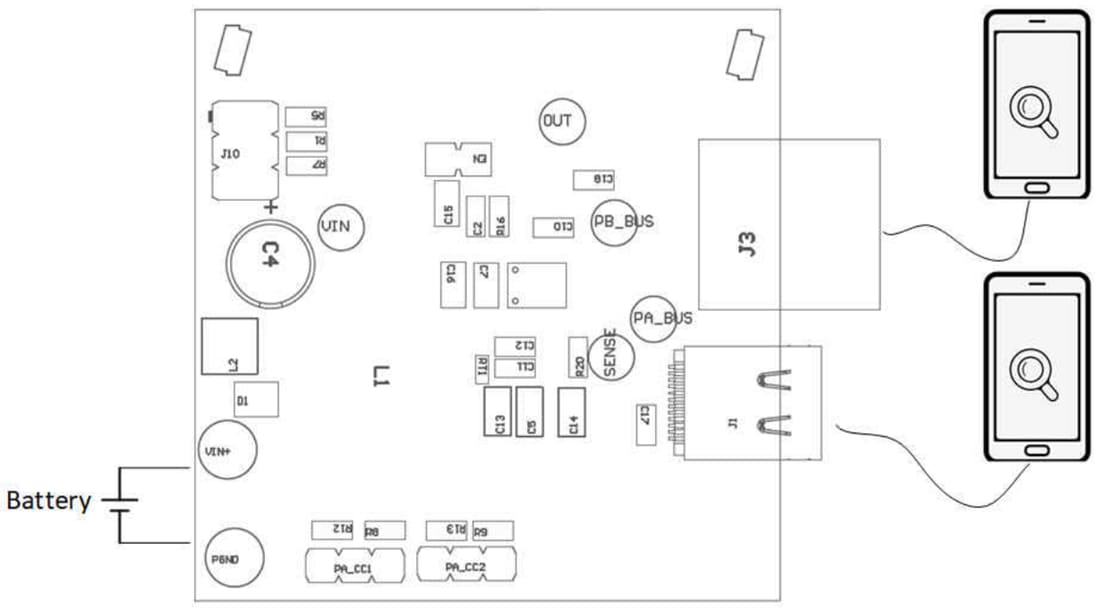

Board Setup
