Renesas Electronics RTKA788152DE00BU Evaluation Kit

Renesas Electronics RTKA788152DE00BU Evaluation Kit is designed to facilitate the evaluation of the RAA78815x 5V RS-485/422 Transceivers. The RAA78815x 5V RS-485/422 Transceivers are an extension of the ISL315x series with the addition of an EFT immunity feature. The RAA78815x features an ±5kV EFT immunity and ±16kV ESD immunity for half-duplex devices.

Features

Single 115kbps Half-duplex transceiver
RAA788152 (115kbps version currently installed) can be unsoldered and replaced by RAA788155 (1Mbps version) or RAA788158 (20Mbps version)

Place holders for fail-safe biasing resistors
Configuration jumpers to operate the transceiver as transmitter or receiver, or as a transmitter with loopback

Specifications

4.5V to 5.5V Supply voltage
115kbps Half-duplex transceiver RAA788152

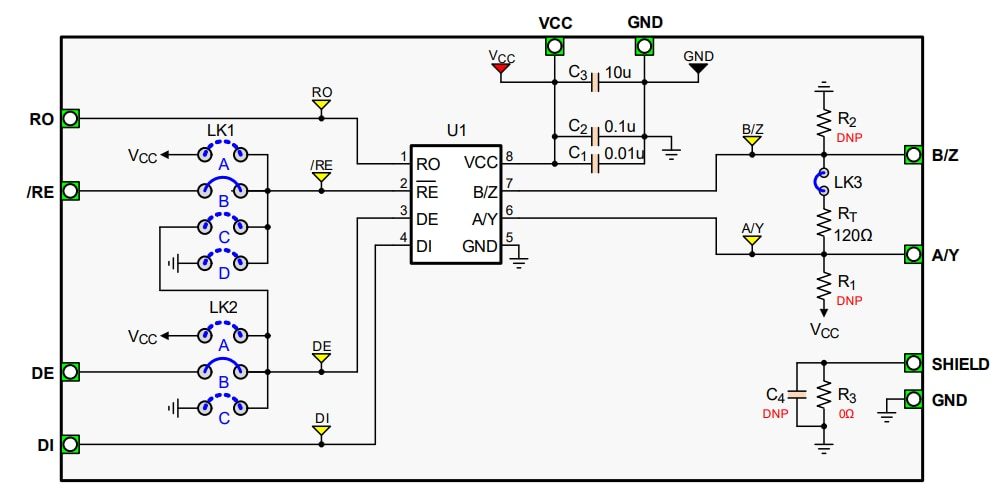

Block Diagram

Block Diagram - Renesas Electronics RTKA788152DE00BU Evaluation Kit
