Mikroe Color 14 Click

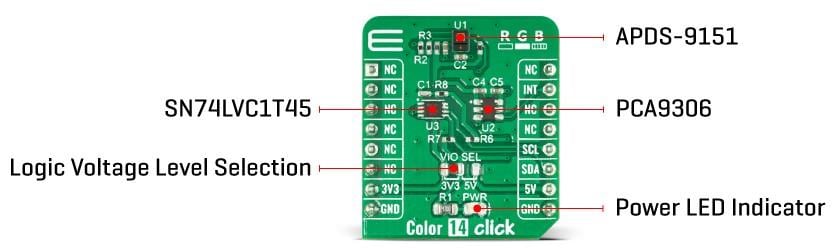

Mikroe Color 14 Click features the Broadcom Limited APDS-9151 integrated RGB, ambient light sensing, IR LED, and a complete proximity detection system. The board is an I²C configurable color sensor. It uses four individual red, green, blue, and IR (RGB+IR) channels in a specially designed matrix arrangement. This allows optimal angular response and accurate RGB spectral response with high lux accuracy over various light sources. The proximity detection feature operates well from bright sunlight to dark rooms.

Features

On-board modules
- Broadcom Limited APDS-9151 digital I²C compatible interface ambient light sensor (ALS), RGB, and proximity sensor with IR LED
Low power consumption
High precision
Individual channels for red, green, blue, and infrared
Approximates human eye response with the green channel
Light output proportional to light intensity

Works well under different light source conditions
Low light sensitivity
Programmable interrupt
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Accurately measuring the subtlest changes in light, ambient light, and proximity detection allowing for maximum flexibility in applications
