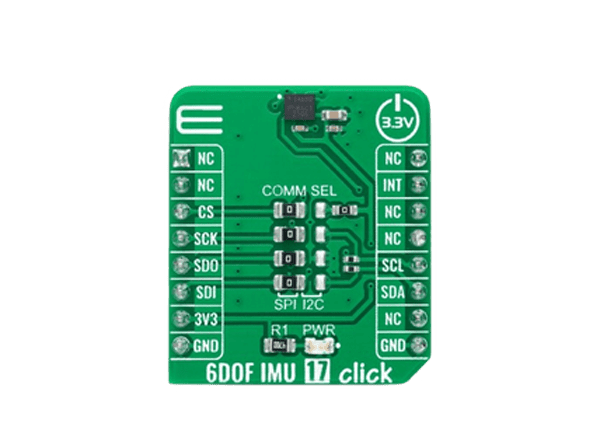

Mikroe 6DOF IMU 17 Click

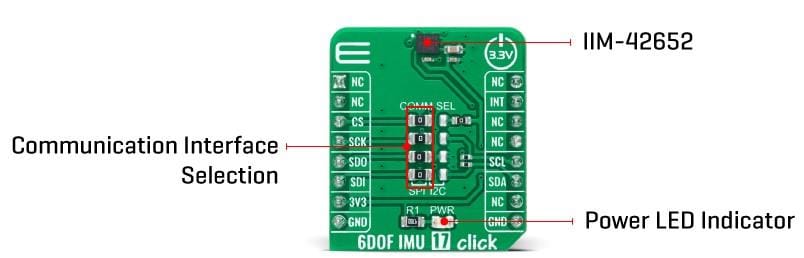

Mikroe 6DOF IMU 17 Click features the TDK InvenSense IIM-42652 6-axis SmartIndustrial™ MotionTracking device. It supports an extended operating temperature range for industrial applications. It combines a 3-axis gyroscope and a 3-axis accelerometer featuring a 2K-byte FIFO. This can lower the traffic on the serial bus interface (SPI or I2C) and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode.

Features

On-board modules
- TDK InvenSense IIM-42652 6-axis SmartIndustrial™ MotionTracking device that supports an extended operating temperature range for industrial applications
Low power consumption
Digital-output X-, Y-, and Z-axis angular rate sensors with a programmable full-scale range

User-programmable interrupts, 20.000g shock tolerant
I²C, SPI interface
mikroBUS compatibility
3.3V input voltage

Applications

Tilt sensing
Navigation
Orientation measurement

Platform stabilization
Robotics
