ams OSRAM SPL S1L90H 1-Channel SMT Laser

ams OSRAM SPL S1L90H 1-Channel SMT Laser is suited for short laser pulses from 1ns to 50ns and 907nm laser wavelength. This SMT laser features a 3B corrosion robustness class, a 1-channel pulsed laser module, and an SMT device. The SPL S1L90H SMT laser operates at 65W peak output power, 20A forward current, and a -40°C to 85°C temperature range. This SMT laser is ideally used in 3D sensing, access control, security, and robotics.

Features

3B corrosion robustness class
1-channel pulsed laser module

SMT device

Specifications

65W typical peak output power
75W maximum peak output power
20A maximum forward current
50ns maximum pulse width
0.3A threshold current

7nm spectral bandwidth
9V typical operating voltage
125°C maximum junction temperature
-40°C to 85°C operating temperature range
-40°C to 100°C storage temperature range

Applications

3D sensing
Access control and security
Appliances and tools

Factory automation
Home and building automation
Robotics

ams OSRAM SPL S1L90H 1-Channel SMT Laser

Features

Specifications

Applications

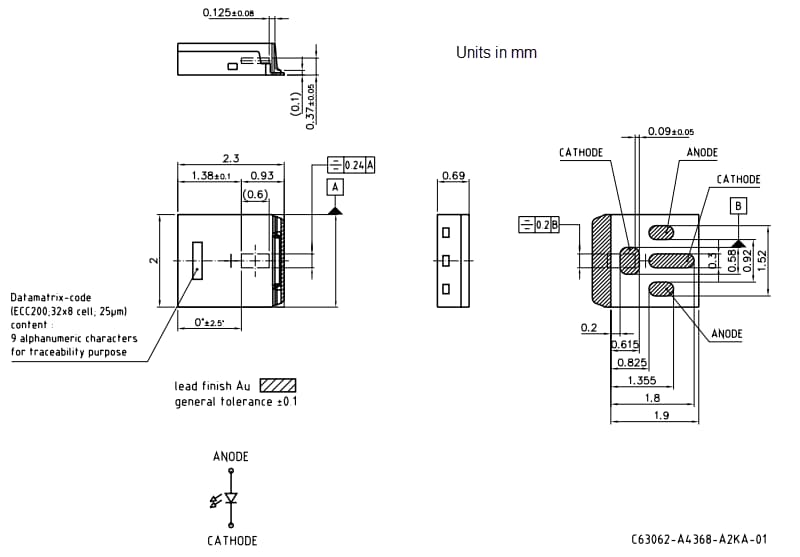

Dimension Diagram
